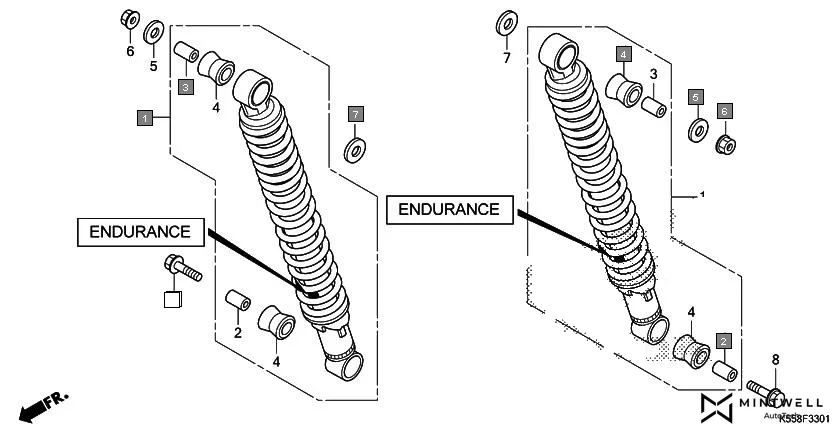

F-33-1 - REAR CUSHION(ENDURANCE)
HONDA Livo CBF110G · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K55-951 | CUSHION ASSY., RR.(ENDURANCE) | 2 | |
| 2 | 52485-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 3 | 52486-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 4 | 52495-K23-902 | BUSH, RUBBER(ENDURANCE) | 4 | |
| 5 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 2 | |
| 6 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 7 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
| 8 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
| 8 | 95802-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
