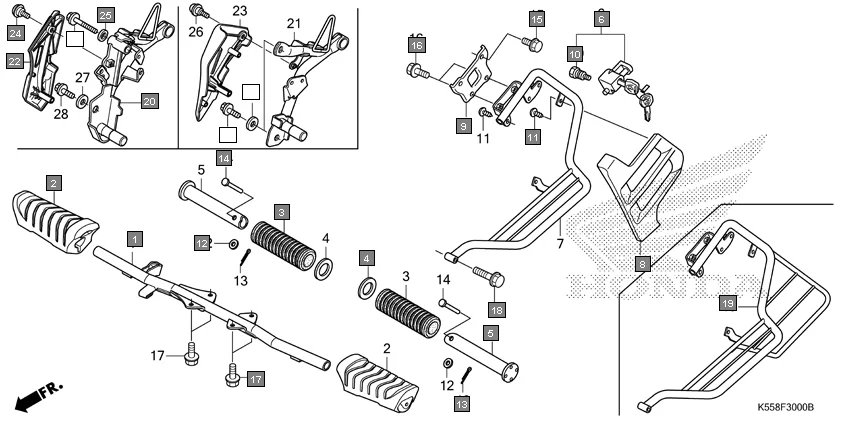

F-30 - STEP/SARI GUARD
HONDA Livo CBF110G · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50610-K55-970 | BAR COMP., STEP | 1 | |
| 2 | 50661-K14-960 | RUBBER, MAIN STEP | 2 | |
| 3 | 50710-KTE-910 | RUBBER, PILLION STEP | 2 | |
| 4 | 50712-405-000 | WASHER, PILLION STEP | 2 | |
| 5 | 50715-405-000 | BAR COMP., STEP PILLION | 2 | |
| 6 | 50730-K14-900 | HOLDER SET, HELMET | 1 | |
| 8 | 51104-K14-900 | GUARD B, SARI | 1 | |
| 9 | 51105-K55-600 | STAY, SARI GUARD | 1 | |
| 10 | 90107-449-000 | BOLT, HELMET HOLDER SETTING | 1 | |
| 11 | 93903-35220 | SCREW, TAPPING, 5X12 | 2 | |
| 12 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 13 | 94201-16120 | PIN, SPLIT, 1.6 X 12 | 2 | |
| 14 | 90131-KWP-F00 | PIN, PILLION STEP | 2 | |
| 15 | 95701-08014-00 | BOLT FLANGE 8X14 | 2 | |
| 16 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 2 | |
| 18 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 19 | 51103-K55-950 | GUARD A, SARI | 1 | |
| 20 | 50155-K55-970 | BRACKET COMP., R. PILLION STEP | 1 | |
| 22 | 83561-K55-970 | COVER(CBS) | 1 | |
| 27 | 94101-08800 | WASHER, PLAIN, 8MM | 1 | |
| 28 | 95701-08022-00 | BOLT, FLANGE, 8 X 22 | 1 | |
| 29 | 95701-08060-00 | BOLT, FLANGE, 8X60 | 1 | |
