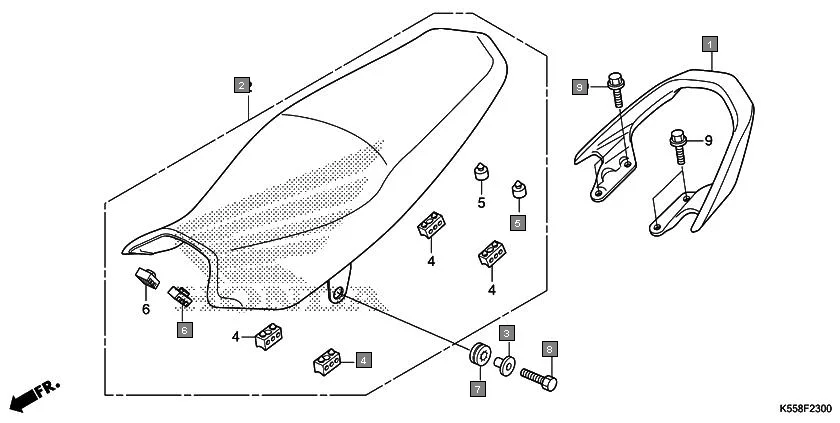

F-23 - SEAT/REAR GRIP
HONDA Livo CBF110G · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K55-600 | GRIP, RR. | 1 | |
| 2 | 77200-K55-951ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 | |
| 3 | 77201-KYY-900 | COLLAR, SEAT MOUNTING | 2 | |
| 4 | 77204-KYA-600 | RUBBER A, SEAT SETTING | 4 | |
| 5 | 77206-KPP-T00 | RUBBER, SEAT CUSHION | 2 | |
| 6 | 77207-KYA-600 | RUBBER B, SEAT SETTING | 2 | |
| 7 | 77218-KYY-900 | RUBBER, SEAT STAY | 2 | |
| 8 | 92101-08028-0A | BOLT, HEX., 8X28 | 2 | |
| 9 | 95701-08018-08 | BOLT, FLANGE, 8X18 | 4 | |
