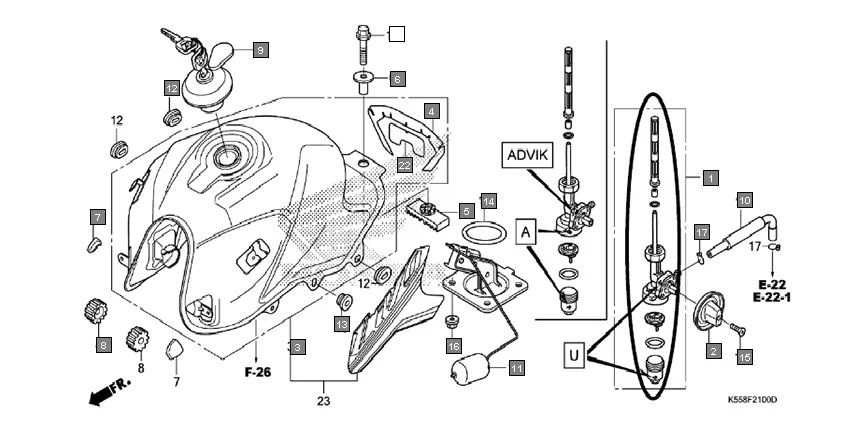

F-21 - FUEL TANK
HONDA Livo CBF110G · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16950-K55-601 | COCK ASSY., FUEL(UCAL) | 1 | |
| 1 | 16950-K55-602 | COCK ASSY., FUEL(ADVIK) | 1 | |
| 2 | 16955-K55-600 | LEVER, FUEL COCK | 1 | |
| 3 | 17500-K55-900ZA | TANK ASSY, FUEL *YR333M*SUNSET BROWN METALLIC | 1 | |
| 3 | 17500-K55-900ZB | TANK ASSY, FUEL(WL) *R355M*IMPERIAL RED METALLIC | 1 | |
| 3 | 17500-K55-900ZC | TANK ASSY, FUEL(WL) *PB396M*ATHLETIC BLUE METALLIC | 1 | |
| 3 | 17500-K55-900ZD | TANK ASSY, FUEL *NH303M*MAT AXIS GRAY METALLIC | 1 | |
| 3 | 17500-K55-900ZE | TANK ASSY, FUEL(WL)*NH1*BLACK | 1 | |
| 3 | 17500-K55-900ZF | TANK ASSY, FUEL*NHB63P*PEARL AMAZING WHITE | 1 | |
| 4 | 17506-K55-600 | FILM, TANK PROTECTOR | 1 | |
| 5 | 17508-KVX-600 | RUBBER, RR. FUEL TANK MOUNTING | 1 | |
| 6 | 17509-K23-900 | COLLAR, FUEL TANK MOUNT | 1 | |
| 7 | 17529-KVN-900 | RUBBER SHROUD MOUNT | 2 | |
| 8 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 9 | 17620-KTE-D03 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 | |
| 10 | 17681-K55-600 | TUBE, FUEL | 1 | |
| 11 | 37800-K55-951 | FUEL UNIT | 1 | |
| 12 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 3 | |
| 13 | 83551-376-000 | GROMMET, SIDE COVER | 1 | |
| 14 | 91305-443-740 | O RING, 39.5 X 5 | 1 | |
| 15 | 93500-04016-0G | SCREW PAN 4X16 | 1 | |
| 17 | 90652-KWP-F00 | CLIP, TUBE(B8) | 2 | |
| 18 | 95701-08035-08 | BOLT, FLANGE, 8X35 | 1 | |
| 22 | 17507-K55-600 | FILM B, TANK PROTECTOR | 1 | |
