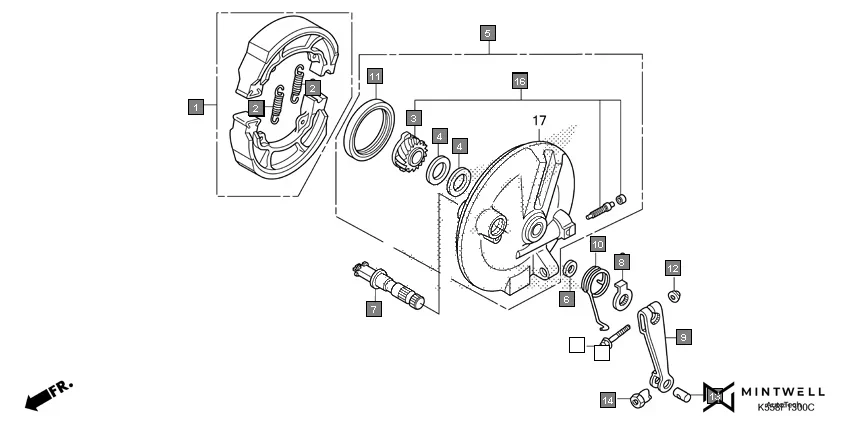

F-13 - FRONT BRAKE PANEL
HONDA Livo CBF110G · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KTN-700 | SHOE SET, BRAKE(JB) | 1 | |
| 2 | 43151-329-000 | SPRING, BRAKE SHOE (ASK) | 2 | |
| 2 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 3 | 44806-KTE-910 | GEAR, SPEEDOMETER(21T) | 1 | |
| 4 | 44809-KTC-900 | WASHER, SPEEDOMETER GEAR | 2 | |
| 5 | 45010-KTE-951ZA | PANEL SUB COMP., FR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 6 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 7 | 45141-KTC-900 | CAM FR. BRAKE | 1 | |
| 8 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 9 | 45410-K23-900 | ARM, FR. BRAKE | 1 | |
| 10 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 1 | |
| 11 | 91251-GK4-003 | OIL SEAL, 47X60X7(ARAI) | 1 | |
| 13 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 14 | 95015-42000 | NUT B ADJUST | 1 | |
| 15 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 15 | 95702-06032-00 | BOLT, FLANGE, 6X32 | 1 | |
| 16 | 44820-KTE-910 | GEAR SET, SPEEDOMETER | 1 | |
| 16 | 44820-KTE-911 | GEAR SET, SPEEDOMETER | 1 | |
