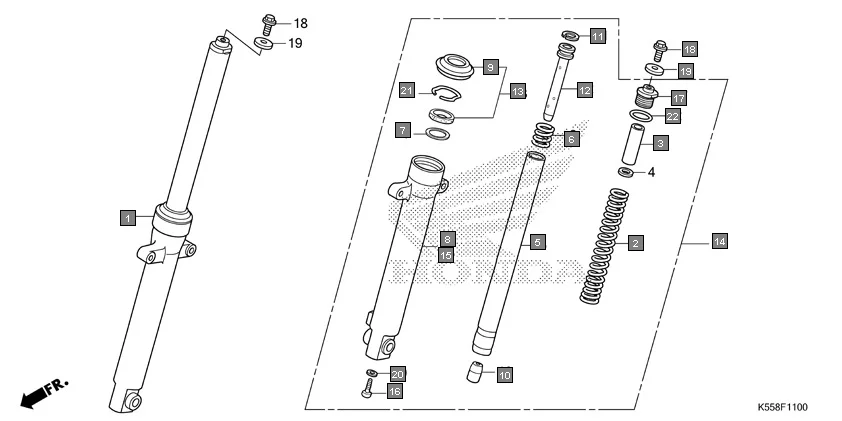

F-11 - FRONT FORK

HONDA Livo CBF110G · 21 parts

Parts in This Assembly (21)

Ref #	Part Number	Description	Qty
1	51400-K55-901	FORK ASSY, R FR(ETPL)	1
2	51401-K23-902	SPRING, FR. FORK(ENDURANCE)	2
3	51403-K63-D11	COLLAR, SPRING	2
5	51410-K23-902	PIPE COMP., FR. FORK (ENDURANCE)	2
6	51412-K23-902	SPRING, REBOUND	2
7	51413-K63-D11	RING, BACK UP	2
8	51420-K55-602	CASE, R. FR. BOTTOM(ETPL)	1
9	51425-K23-902	DUST SEAL(ENDURANCE)	2
10	51432-K23-902	PIECE, OIL LOCK	2
11	51437-K23-902	RING, PISTON	2
12	51440-K23-902	PIPE, SEAT	2
13	51490-K23-902	SEAL SET, FR. FORK	2
14	51500-K55-901	FORK ASSY, L FR(ETPL)	1
15	51520-K55-602	CASE, L. FR. BOTTOM(ETPL)	1
16	90116-K23-902	BOLT, SOCKET, 8MM	2
17	90123-K23-902	BOLT A, FR. FORK	2
18	90123-KRM-860	BOLT, FR. FORK	2
19	90521-KSP-900	WASHER, 10.3MM	2
20	90544-K23-902	WASHER, SPECIAL, 8MM	2
21	90651-K23-902	RING, OIL SEAL STOP	2
22	91351-K23-902	O-RING	2
