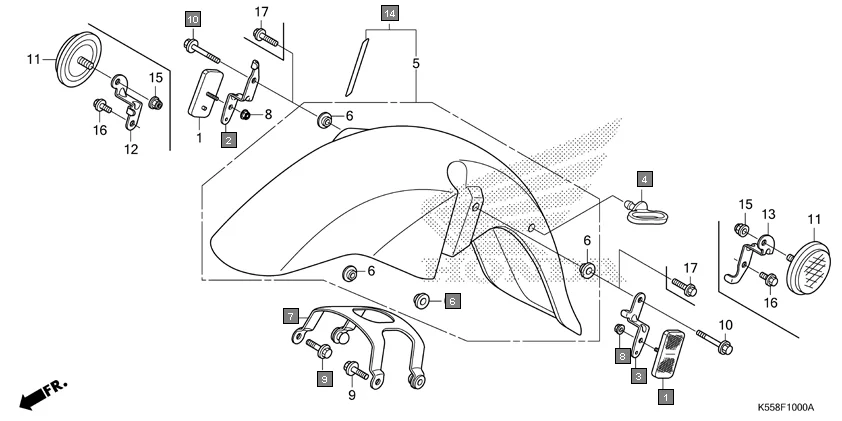

F-10 - FRONT FENDER
HONDA Livo CBF110G · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 33742-K55-600 | STAY, R. FR. REFLECTOR | 1 | |
| 3 | 33743-K55-600 | STAY, L. FR. REFLECTOR | 1 | |
| 4 | 45451-KTE-600 | GUIDE, FR. FENDER CABLE | 1 | |
| 6 | 61101-K55-600 | COLLAR, FR. FENDER SETTING | 4 | |
| 7 | 61102-K55-600 | STAY, FR. FENDER | 1 | |
| 8 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 9 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 14 | 61110-K55-970ZA | FENDER SET, FR.(WL) *TYPE6* | 1 | |
| 14 | 61110-K55-970ZB | FENDER SET, FR.(WL) *TYPE5* | 1 | |
| 14 | 61110-K55-970ZC | FENDER SET, FR.(WL) *TYPE4* | 1 | |
| 14 | 61110-K55-970ZD | FENDER SET, FR.(WL) *TYPE3* | 1 | |
| 14 | 61110-K55-970ZE | FENDER SET, FR.(WL) *TYPE2* | 1 | |
| 14 | 61110-K55-970ZF | FENDER SET, FR.(WL) *TYPE1* | 1 | |
