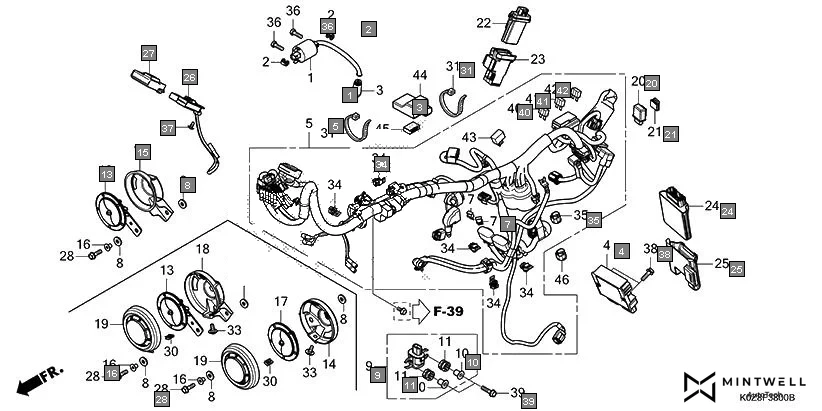

F-38 - WIRE HARNESS
HONDA HNESS CB350DM · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30500-K0Z-901 | COIL ASSY., IGNITION | 1 | |
| 2 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 3 | 30700-KTE-D01 | CAP ASSY., NOISE SUPPRESSOR (MINDA) | 1 | |
| 4 | 31600-K0Z-901 | RECTIFIER COMP., REGULATE | 1 | |
| 5 | 32100-K0Z-930 | HARNESS, WIRE | 1 | |
| 7 | 32146-SJ4-003 | DIODE(3P) | 2 | |
| 8 | 33714-K38-900 | RUBBER, TAILLIGHT BRACKET | 2 | |
| 9 | 35160-KRE-G01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 10 | 35162-KRE-G00 | COLLAR | 2 | |
| 11 | 35163-KRE-G00 | GROMMET | 2 | |
| 13 | 38110-K0Z-901 | HORN COMP.(HIGH) | 1 | |
| 15 | 38112-K0Z-900 | COVER, R. RR. HORN | 1 | |
| 16 | 38117-K0Z-900 | COLLAR, HORN SETTING | 1 | |
| 20 | 38301-K0Z-901 | RELAY COMP., WINKER(LED) | 1 | |
| 21 | 38306-K14-931 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 | |
| 24 | 38770-K0Z-902 | PGM-FI UNIT | 1 | |
| 25 | 38771-K0Z-900 | CUSHION, PGM-FI UNIT | 1 | |
| 26 | 38940-K0Z-911 | CHARGER UNIT, USB(TYPE-C) | 1 | |
| 27 | 38942-K0Z-910 | COVER, RUBBER | 1 | |
| 28 | 90122-K0Z-900 | BOLT, FLANGE, 6X20 | 1 | |
| 31 | 90657-KRP-901 | CABLE, TIE(LONG) | 1 | |
| 34 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 3 | |
| 35 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 36 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 37 | 93913-25180 | SCREW, TAPPING, 5X10(PO) | 1 | |
| 39 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 2 | |
| 40 | 98200-40750 | FUSE, MINI(7.5A) | 5 | |
| 41 | 98200-41000 | FUSE, MINI(10A) | 3 | |
| 42 | 98200-42000 | FUSE, MINI(20A) | 3 | |
