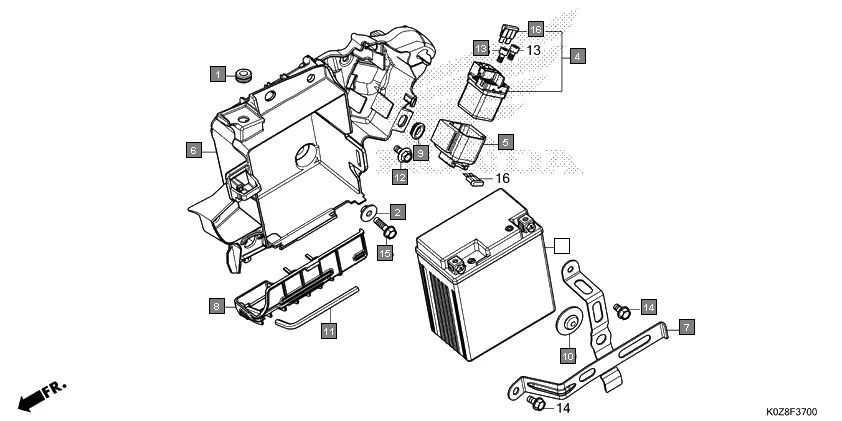

F-37 - BATTERY
HONDA HNESS CB350DM · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11344-MB0-000 | GROMMET A, REAR COVER | 1 | |
| 2 | 18316-KVB-900 | COLLAR, MUFFLER PROTECTOR | 1 | |
| 3 | 31500-K0Z-901 | BATTERY(YTZ7)(YUASA) | 1 | |
| 4 | 35850-K0Z-901 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 5 | 35856-K0Z-900 | RUBBER, SHOCK | 1 | |
| 6 | 50385-K0Z-900 | BOX, BATTERY | 1 | |
| 7 | 50386-K0Z-900 | BAND, BATTERY | 1 | |
| 8 | 50387-K0Z-900 | TRAY, BATTERY | 1 | |
| 9 | 64413-KSS-C00 | GROMMET, BODY COVER | 1 | |
| 10 | 83618-323-000 | RUBBER, BATTERY BOX | 1 | |
| 11 | 89221-429-000 | WRENCH, HEX., 5MM | 1 | |
| 12 | 90111-162-000 | BOLT, FLANGE, 6MM | 1 | |
| 13 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 16 | 98200-33000 | FUSE, BLADE(30A) | 2 | |
