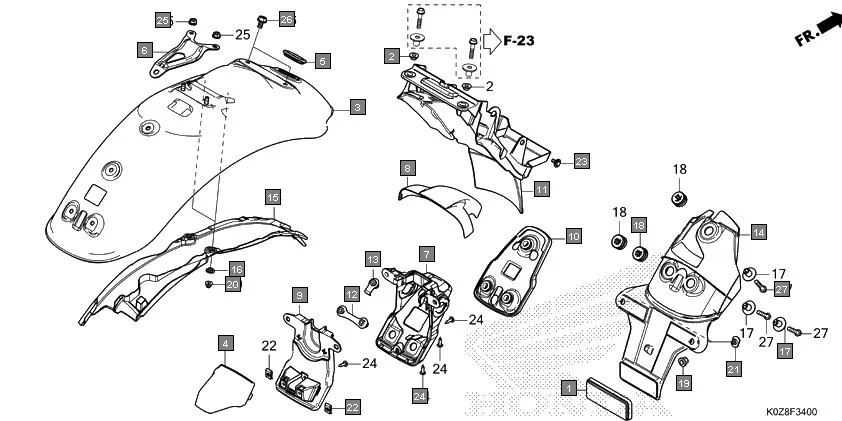

F-34 - REAR FENDER
HONDA HNESS CB350DM · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 2 | 61101-K0N-D00 | COLLAR, 6.2X5 | 2 | |
| 3 | 80100-K0Z-910 | FENDER COMP., RR. | 1 | |
| 4 | 80103-K0Z-900 | COVER, LICENSE LIGHT | 1 | |
| 5 | 80106-K0Z-900 | GROMMET, WIRE CORD | 1 | |
| 6 | 80110-K0Z-900 | BRACKET, RR. FENDER | 1 | |
| 7 | 80120-K0Z-900 | BASE, TAILLIGHT | 1 | |
| 8 | 80125-K0Z-900 | COVER, TAILLIGHT | 1 | |
| 9 | 80130-K0Z-900 | COVER, TAILLIGHT BASE | 1 | |
| 10 | 80140-K0Z-900 | RUBBER, RR. FENDER | 1 | |
| 11 | 80200-K0Z-900 | COVER, RR. FENDER UNDER | 1 | |
| 12 | 80250-K0Z-900 | PLATE A, TAILLIGHT MOUNT | 1 | |
| 13 | 80251-K0Z-900 | PLATE B, TAILLIGHT MOUNT | 1 | |
| 14 | 84701-K0Z-900 | BRACKET, NUMBER PLATE | 1 | |
| 15 | 84702-K0Z-900 | COVER, HARNESS | 1 | |
| 16 | 84703-K0Z-900 | COLLAR, COVER MOUNTING | 2 | |
| 17 | 84704-K0Z-900 | COLLAR, MOUNTING | 3 | |
| 18 | 84705-K0Z-900 | RUBBER, LIGHT CASE MOUNT | 3 | |
| 20 | 90304-K0Z-900 | NUT, FLANGE CAP, 5MM | 2 | |
| 21 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 22 | 90344-KTE-910 | NUT, CLIP, 4MM | 2 | |
| 23 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 1 | |
| 24 | 93903-24420 | SCREW,TAPPING,4 X 16 | 4 | |
| 26 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 2 | |
| 27 | 96001-06028-08 | BOLT, FLANGE, 6X28 | 3 | |
