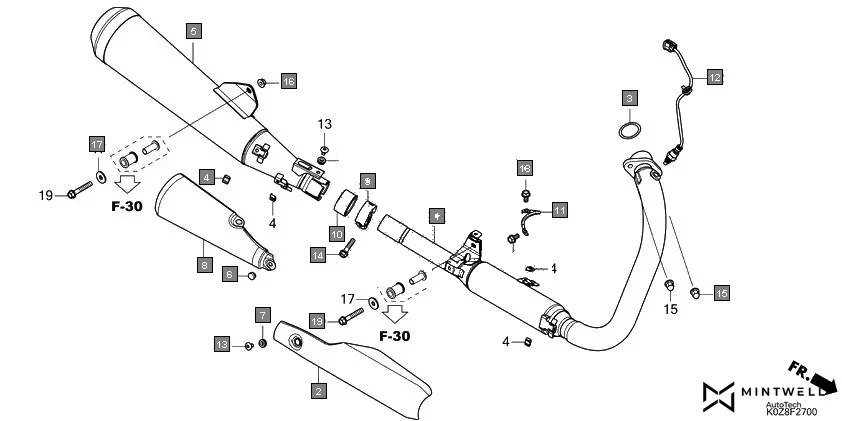

F-27 - EXHAUST MUFFLER
HONDA HNESS CB350DM · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18150-K0Z-910 | PIPE COMP., EX. | 1 | |
| 2 | 18155-K0Z-910 | COVER, EX. PIPE | 1 | |
| 3 | 18291-MM5-860 | GASKET, EX. PIPE | 1 | |
| 4 | 18293-MCA-A20 | RUBBER, PROTECTOR PACKING | 4 | |
| 5 | 18310-K0Z-910 | MUFFLER COMP. | 1 | |
| 6 | 18345-KTK-000 | RUBBER, MUFFLER PROTECTOR | 1 | |
| 7 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 8 | 18355-K0Z-910 | COVER, MUFFLER | 1 | |
| 9 | 18374-ML0-000 | BAND, L. EX. PIPE | 1 | |
| 10 | 18391-MN5-650 | PACKING, MUFFLER | 1 | |
| 11 | 32200-K0Z-900 | SUB CORD, OXYGEN SENSOR EARTH | 1 | |
| 12 | 36532-K0Z-901 | SENSOR, OXYGEN | 1 | |
| 13 | 90113-KYJ-710 | SCREW, PAN, 6X12 | 2 | |
| 14 | 90161-ML7-000 | BOLT, FLANGE, 8X35 | 1 | |
| 15 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 16 | 90173-K0Z-900 | NUT, FLANGE, 8MM | 1 | |
| 17 | 90172-K0Z-900 | WASHER, PLAIN, 8MM | 2 | |
| 18 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
| 19 | 90171-K0Z-900 | BOLT, FLANGE, 8X50 | 2 | |
