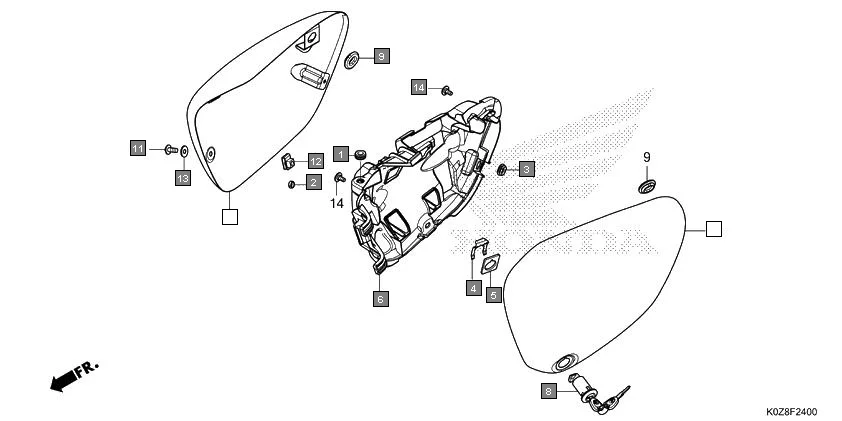

F-24 - SIDE COVER
HONDA HNESS CB350DM · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11344-MB0-000 | GROMMET A, REAR COVER | 1 | |
| 2 | 17223-KVX-600 | COLLAR, AIR CLEANER | 1 | |
| 3 | 64413-KSS-C00 | GROMMET, BODY COVER | 1 | |
| 4 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 5 | 83501-K0Z-900 | PLATE, SIDE COVER | 1 | |
| 6 | 83520-K0Z-900 | COVER, R. SIDE INNER | 1 | |
| 7 | 83530-K0Z-900ZM | COVER SET, R. SIDE(WL) *R396M* PRECIOUS RED METALLIC | 1 | |
| 7 | 83530-K0Z-900ZN | COVER SET, R. SIDE(WL) *PB423M* MIDNIGHT BLUE METALLIC 2 | 1 | |
| 7 | 83530-K0Z-900ZP | COVER SET, R. SIDE(WL) *NHC55M* MAT MASSIVE GRAY METALLIC | 1 | |
| 7 | 83530-K0Z-900ZQ | COVER SET, R. SIDE(WL) *NHC54M* MAT STEEL BLACK METALLIC | 1 | |
| 7 | 83530-K0Z-900ZR | COVER SET, R. SIDE(WL) *NHC48P* PEARL NIGHTSTAR BLACK 2 | 1 | |
| 7 | 83530-K0Z-900ZS | COVER SET, R. SIDE(WL) *GY156M* MAT MARSHAL GREEN METALLIC 2 | 1 | |
| 8 | 83550-K0Z-901 | LOCK, SIDE COVER | 1 | |
| 9 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 10 | 83630-K0Z-900ZM | COVER SET, L. SIDE(WL) *R396M* PRECIOUS RED METALLIC | 1 | |
| 10 | 83630-K0Z-900ZN | COVER SET, L. SIDE(WL) *PB423M* MIDNIGHT BLUE METALLIC 2 | 1 | |
| 10 | 83630-K0Z-900ZP | COVER SET, L. SIDE(WL) *NHC55M* MAT MASSIVE GRAY METALLIC | 1 | |
| 10 | 83630-K0Z-900ZQ | COVER SET, L. SIDE(WL) *NHC54M* MAT STEEL BLACK METALLIC | 1 | |
| 10 | 83630-K0Z-900ZR | COVER SET, L. SIDE(WL) *NHC48P* PEARL NIGHTSTAR BLACK 2 | 1 | |
| 10 | 83630-K0Z-900ZS | COVER SET, L. SIDE(WL) *GY156M* MAT MARSHAL GREEN METALLIC 2 | 1 | |
| 11 | 90120-K0Z-900 | SCREW, PAN, 6X14 | 1 | |
| 12 | 90311-KSH-900 | NUT, CLIP, 6MM | 1 | |
| 13 | 90509-K0Z-900 | WASHER, 6MM | 1 | |
| 14 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
