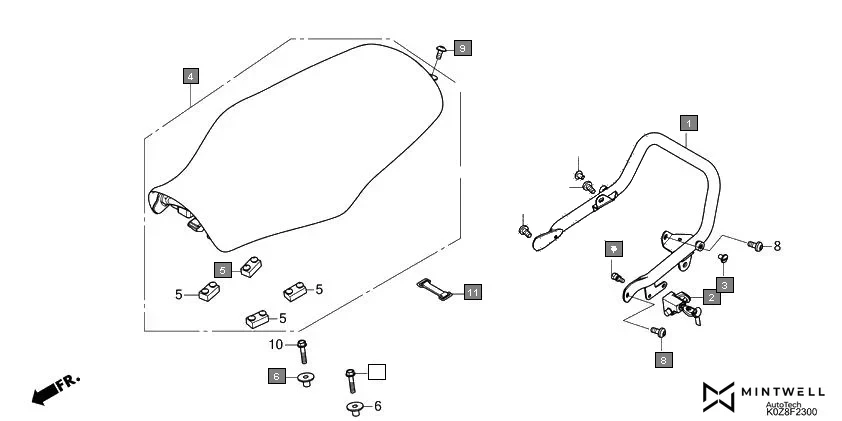

F-23 - SEAT(CB350DM/DSM)
HONDA HNESS CB350DM · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K0Z-900 | PIPE COMP., RR. GRIP | 1 | |
| 2 | 50730-K0Z-901 | HOLDER ASSY., HELMET | 1 | |
| 4 | 77200-K0Z-901ZB | SEAT ASSY., DOUBLE *TYPE1* | 1 | |
| 4 | 77200-K0Z-901ZA | SEAT ASSY., DOUBLE *TYPE2* | 1 | |
| 5 | 77205-KPP-T00 | RUBBER, SEAT SETTING | 4 | |
| 6 | 77207-K0Z-900 | COLLAR, SEAT MOUNT | 2 | |
| 7 | 90107-K0Z-900 | BOLT, BREAK OFF | 1 | |
| 8 | 90111-K0Z-900 | BOLT, SOCKET SPECIAL, 8X18 | 4 | |
| 9 | 90120-K0Z-900 | SCREW, PAN, 6X14 | 1 | |
| 10 | 95701-06030-08 | BOLT, FLANGE, 6X30 | 2 | |
| 11 | 31501-K0Z-900 | BAND, BATTERY | 1 | |
