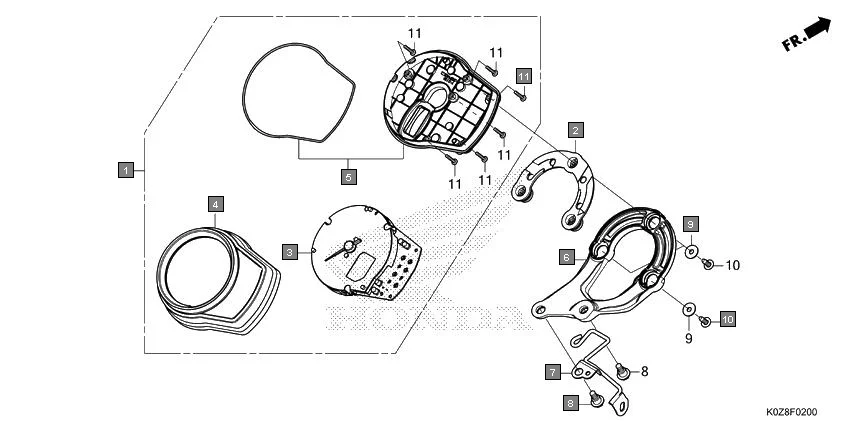

F-2 - METER
HONDA HNESS CB350DM · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K0Z-931 | METER ASSY., COMBINATION(KPH) | 1 | |
| 2 | 37101-K0Z-900 | RUBBER, METER | 1 | |
| 3 | 37200-K0Z-901 | METER COMP., SPEED & LCD(KPH) | 1 | |
| 4 | 37211-K0Z-911 | CASE ASSY., METER UPPER | 1 | |
| 5 | 37212-K0Z-911 | CASE ASSY., METER LOWER | 1 | |
| 6 | 61315-K0Z-900 | BRACKET, METER | 1 | |
| 7 | 61316-K0Z-900 | STAY COMP., CABLE GUIDE | 1 | |
| 8 | 90101-K43-D00 | BOLT, SPECIAL, 6MM | 2 | |
| 9 | 90155-K0Z-900 | WASHER, PLAIN, 5MM | 3 | |
| 10 | 90156-K0Z-900 | SCREW, TAPPING, 5X14 | 3 | |
| 11 | 93903-22580 | SCREW, TAPPING, 3X20 | 6 | |
