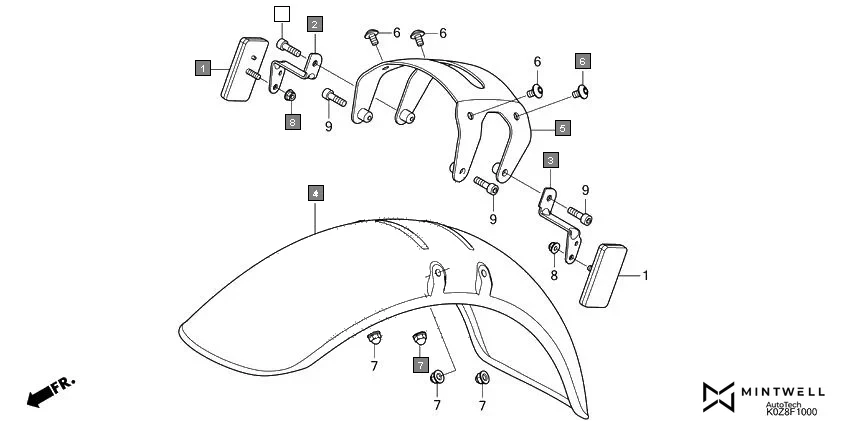

F-10 - FRONT FENDER
HONDA HNESS CB350DM · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 33742-K0Z-900 | STAY, R. FR. REFLECTOR | 1 | |
| 3 | 33743-K0Z-900 | STAY, L. FR. REFLECTOR | 1 | |
| 4 | 61100-K0Z-910 | FENDER, FR. | 1 | |
| 5 | 61200-K0Z-900 | STAY, FR. FENDER | 1 | |
| 6 | 90115-K0Z-900 | SCREW, PAN, 6X10 | 4 | |
| 7 | 90201-415-000 | NUT, CAP, 6MM | 4 | |
| 8 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 9 | 96600-06020-08 | BOLT, SOCKET, 6X20 | 4 | |
