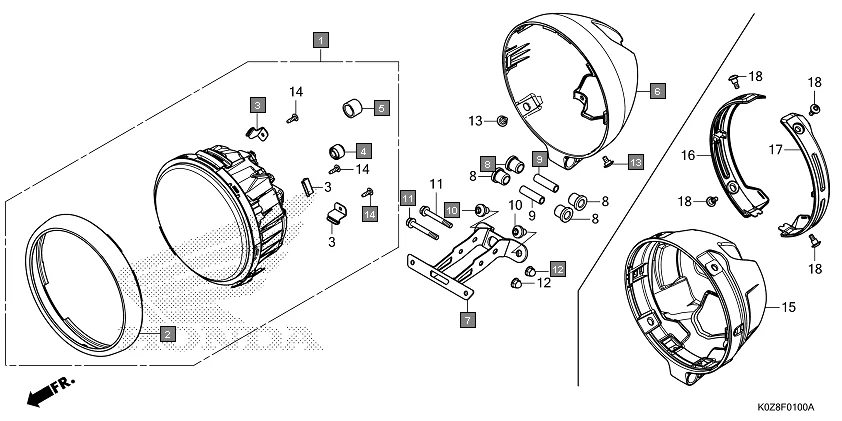

F-1 - HEADLIGHT
HONDA HNESS CB350DM · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K0Z-901 | HEADLIGHT ASSY. | 1 | |
| 2 | 33101-K0Z-900 | RIM COMP. | 1 | |
| 3 | 33111-K0Z-901 | BRACKET, RIM MOUNTING | 3 | |
| 4 | 33113-MEE-D01 | PIPE, CP | 1 | |
| 5 | 33113-K07-M51 | PIPE, CP | 1 | |
| 6 | 61302-K0Z-900 | CASE, HEADLIGHT | 1 | |
| 7 | 61310-K0Z-900 | STAY COMP., HEADLIGHT LOWER | 1 | |
| 8 | 61322-K0Z-900 | RUBBER, HEADLIGHT | 4 | |
| 9 | 61323-K0Z-900 | COLLAR, HEADLIGHT STAY | 2 | |
| 10 | 90109-K0Z-900 | BOLT, SOCKET SPECIAL, 8X12 | 2 | |
| 11 | 90135-K0Z-900 | BOLT, CAP, 6MM | 2 | |
| 12 | 90151-K0Z-900 | NUT, CAP, 6MM | 2 | |
| 14 | 93903-24320 | SCREW, TAPPING, 4X12 | 3 | |
