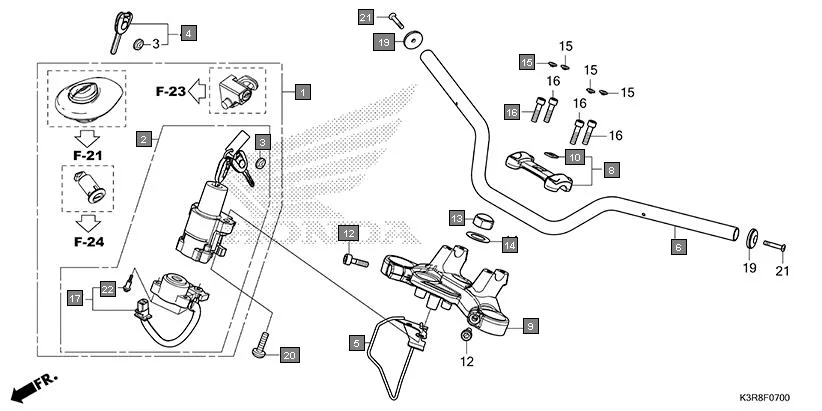

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA CB350 CB350CR · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-K0Z-D00 | KEY SET | 1 | |
| 2 | 35100-K0Z-D01 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 3 | 35113-MJK-N20 | EMBLEM, KEY | 4 | |
| 4 | 35121-K0Z-D01 | KEY, BLANK | 1 | |
| 5 | 45156-K3R-D00 | GUIDE, FR. BRAKE HOSE | 1 | |
| 6 | 53100-K0Z-D00 | PIPE, STEERING HANDLE | 1 | |
| 8 | 53130-K0Z-900ZA | HOLDER COMP., HANDLE UPPER *NH35M* CLOUD SILVER METALLIC | 1 | |
| 9 | 53230-K0Z-900ZC | BRIDGE, FORK TOP *TYPE2* | 1 | |
| 10 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 12 | 90102-K0Z-900 | BOLT, SOCKET, 8X30 | 2 | |
| 13 | 90304-K63-D30 | NUT, STEERING STEM | 1 | |
| 14 | 90503-KGA-900 | WASHER, STEERING STEM | 1 | |
| 15 | 91455-KEA-000 | CAP, SOCKET BOLT, 8MM | 4 | |
| 16 | 96600-08032-08 | BOLT, SOCKET, 8X32 | 4 | |
| 17 | 35101-K0Z-D01 | BASE COMP., CONTACT | 1 | |
| 19 | 53104-K3R-D00 | WEIGHT, STEERING HANDLE | 2 | |
| 20 | 90107-MBG-000 | BOLT, ONE-WAY, 8MM | 2 | |
| 21 | 90107-MCT-771 | SCREW, OVAL, 6X35 | 2 | |
| 22 | 91059-K0Z-D00 | SCREW, TAPPING, 3X16 | 3 | |
