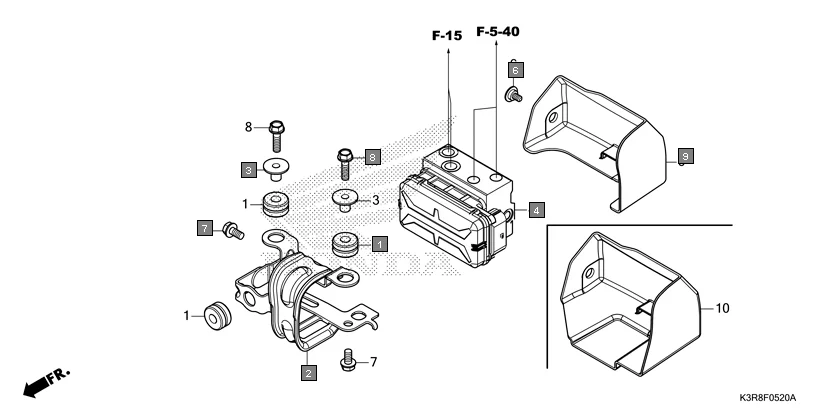

F-5-20 - ABS MODULATOR
HONDA CB350 CB350CR · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17245-107-010 | RUBBER, AIR CLEANER CASE MOUNTING | 3 | |
| 2 | 50245-K0Z-900 | STAY COMP., ABS MODULATOR | 1 | |
| 3 | 50246-K0Z-900 | COLLAR, ABS MODULATOR | 2 | |
| 4 | 57110-K0Z-D31 | MODULATOR ASSY. | 1 | |
| 6 | 90152-K0Z-900 | SCREW, SPECIAL, 5X11 | 1 | |
| 7 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
| 8 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 2 | |
| 9 | 61410-K0Z-D00 | COVER, ABS MODULATOR | 1 | |
