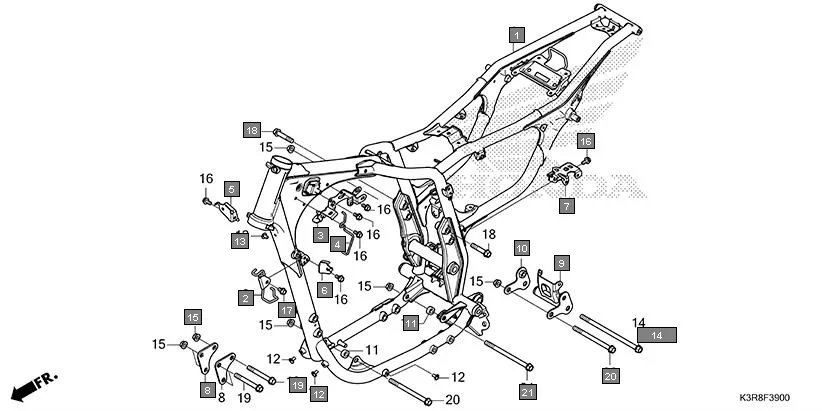

F-39 - FRAME BODY
HONDA CB350 CB350CR · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-K3R-D00 | BODY COMP., FRAME | 1 | |
| 2 | 50169-K0Z-900 | GUIDE B, CLUTCH CABLE | 1 | |
| 3 | 50171-K0Z-900 | STAY COMP., IGNITION COIL | 1 | |
| 4 | 50174-K0Z-900 | GUIDE, HARNESS | 1 | |
| 5 | 50175-K0Z-900 | STAY B, R. HORN | 1 | |
| 6 | 50176-K0Z-910 | STAY B, L. HORN | 1 | |
| 7 | 50192-K0Z-D00 | STAY, BANK ANGLE SENSOR | 1 | |
| 8 | 50351-K0Z-900 | PLATE, FR. ENGINE HANGER | 2 | |
| 9 | 50353-K0Z-900 | PLATE COMP., RR. ENGINE HANGER | 1 | |
| 10 | 50355-K0Z-900 | PLATE, R. RR. ENGINE HANGER | 1 | |
| 11 | 50356-K0Z-900 | COLLAR, ENGINE HANGER | 2 | |
| 12 | 53173-K0Z-900 | PLUG, 6MM | 3 | |
| 13 | 53174-K0Z-900 | PLUG, 8MM | 1 | |
| 14 | 90103-K0Z-900 | BOLT, FLANGE, 10X200 | 1 | |
| 15 | 94050-10070 | NUT,FLANGE,10MM | 7 | |
| 17 | 95701-08012-07 | BOLT FLANGE 8X12 | 1 | |
| 18 | 95801-10050-07 | BOLT, FLANGE, 10X50 | 2 | |
| 19 | 90161-K0Z-900 | BOLT, FLANGE, 10X80 | 3 | |
| 20 | 95801-10130-07 | BOLT, FLANGE, 10X130 | 2 | |
| 21 | 95801-10150-07 | BOLT, FLANGE, 10X150 | 1 | |
