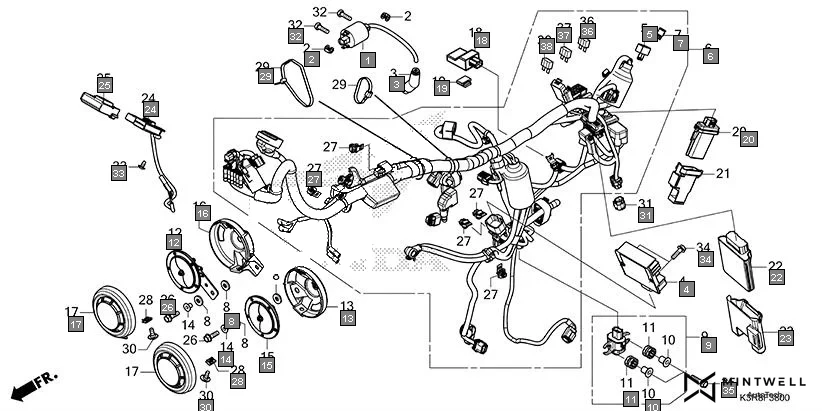

F-38 - WIRE HARNESS
HONDA CB350 CB350CR · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30500-K0Z-901 | COIL ASSY., IGNITION | 1 | |
| 2 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 3 | 30700-K0Z-J01 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 4 | 31600-K0Z-D01 | RECTIFIER ASSY., REGULATOR | 1 | |
| 5 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 6 | 32100-K3R-D00 | HARNESS, WIRE | 1 | |
| 7 | 32146-SJ4-003 | DIODE(3P) | 1 | |
| 8 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 4 | |
| 9 | 35160-KRE-G01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 10 | 35162-KRE-G00 | COLLAR | 2 | |
| 11 | 35163-KRE-G00 | GROMMET | 2 | |
| 12 | 38110-K0Z-901 | HORN COMP.(HIGH) | 1 | |
| 13 | 38111-K0Z-910 | GUARD, L. HORN HEAT | 1 | |
| 14 | 38117-K0Z-900 | COLLAR, HORN SETTING | 2 | |
| 15 | 38120-K0Z-911 | HORN COMP.(LOW) | 1 | |
| 16 | 38121-K0Z-910 | GUARD, R. HORN HEAT | 1 | |
| 17 | 38131-K0Z-910 | COVER, HORN | 2 | |
| 18 | 38301-K0Z-D01 | RELAY COMP., WINKER(LED) | 1 | |
| 19 | 38306-KK4-000 | SUSP WINKER RELAY | 1 | |
| 20 | 38350-K0Z-915 | BLUETOOTH UNIT | 1 | |
| 22 | 38770-K3R-D01 | PGM-FI UNIT | 1 | |
| 23 | 38771-K0Z-900 | CUSHION, PGM-FI UNIT | 1 | |
| 24 | 38940-K0Z-911 | CHARGER UNIT, USB(TYPE-C) | 1 | |
| 25 | 38942-K0Z-910 | COVER, RUBBER | 1 | |
| 26 | 90122-K0Z-900 | BOLT, FLANGE, 6X20 | 2 | |
| 27 | 90651-K2T-V01 | CLIP, COUPLER(DARK BROWN) | 5 | |
| 28 | 90654-K0L-D00 | NUT, CLIP, 5MM | 2 | |
| 31 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 32 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 33 | 93913-25180 | SCREW, TAPPING, 5X10(PO) | 1 | |
| 34 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 2 | |
| 35 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 2 | |
| 36 | 98200-40750 | FUSE, MINI(7.5A) | 6 | |
| 37 | 98200-41000 | FUSE, MINI(10A) | 3 | |
| 38 | 98200-42000 | FUSE, MINI(20A) | 3 | |
