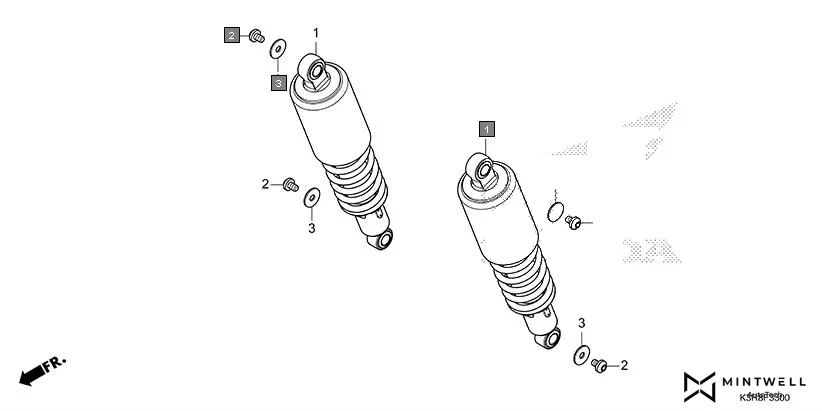

F-33 - REAR CUSHION
HONDA CB350 CB350CR · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K3R-D01 | CUSHION ASSY., RR. | 2 | |
| 2 | 90109-K0Z-900 | BOLT, SOCKET SPECIAL, 8X12 | 4 | |
| 3 | 90502-K87-A00 | WASHER, 8.5X26 | 4 | |
HONDA CB350 CB350CR · 3 parts
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K3R-D01 | CUSHION ASSY., RR. | 2 | |
| 2 | 90109-K0Z-900 | BOLT, SOCKET SPECIAL, 8X12 | 4 | |
| 3 | 90502-K87-A00 | WASHER, 8.5X26 | 4 | |
