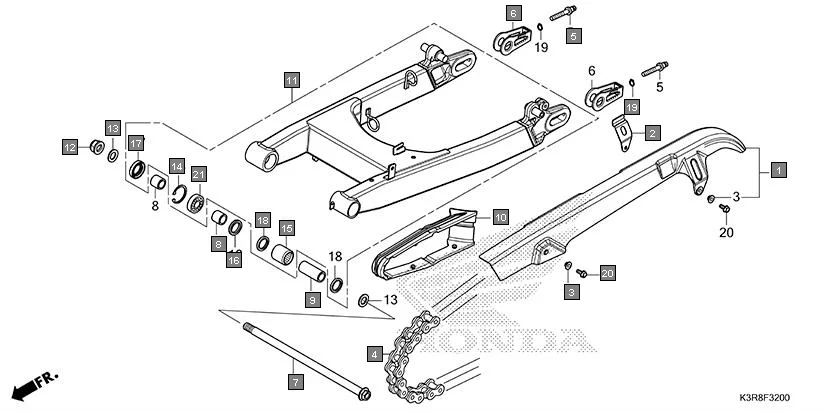

F-32 - SWINGARM
HONDA CB350 CB350CR · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-K0Z-900 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40511-K0Z-900 | PLATE, CHAIN CASE | 1 | |
| 3 | 40512-K0Z-900 | COLLAR, 6.2X5 | 2 | |
| 4 | 40530-K0Z-901 | CHAIN, DRIVE(DID520VF4-104LE) | 1 | |
| 5 | 40542-K0Z-900 | BOLT, CHAIN ADJUSTING | 2 | |
| 6 | 40543-K0Z-900 | ADJUSTER, CHAIN | 2 | |
| 7 | 52101-K0Z-900 | BOLT, SWINGARM PIVOT | 1 | |
| 8 | 52105-K0Z-900 | COLLAR, R. SWINGARM PIVOT | 2 | |
| 9 | 52106-K0Z-900 | COLLAR, L. SWINGARM PIVOT | 1 | |
| 10 | 52170-K0Z-900 | SLIDER, CHAIN | 1 | |
| 11 | 52200-K0Z-D00 | SWINGARM SUB ASSY., RR. | 1 | |
| 12 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 13 | 90503-K0Z-900 | WASHER, 15X25X2.3 | 2 | |
| 14 | 90653-K0Z-900 | CIRCLIP, INTERNAL, 35MM | 1 | |
| 15 | 91071-MJ0-003 | BEARING, NEEDLE, 22X29X30(NTN) | 1 | |
| 16 | 91205-965-003 | OIL SEAL, 22X31X5(ARAI) | 1 | |
| 17 | 91213-MB2-003 | DUST SEAL, 22X35X7(ARAI) | 1 | |
| 18 | 91283-ML7-003 | DUST SEAL, 22X29X4(ARAI) | 2 | |
| 19 | 94511-10000 | CIRCLIP, EXTERNAL, 10MM | 2 | |
| 20 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 21 | 96100-62020-10 | BEARING, RADIAL BALL, 6202 | 1 | |
