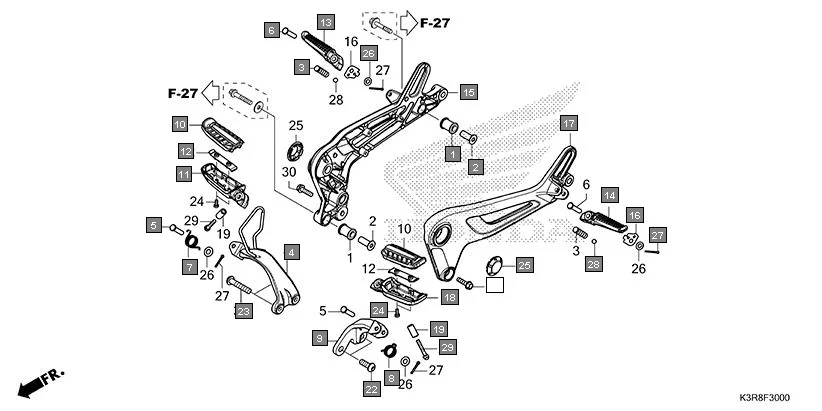

F-30 - STEP
HONDA CB350 CB350CR · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18421-MB0-000 | RUBBER, MUFFLER MOUNTING | 2 | |
| 2 | 18422-K0Z-900 | COLLAR, MUFFLER MOUNTING | 2 | |
| 3 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 4 | 50550-K0Z-900 | BRACKET COMP., R. MAIN STEP | 1 | |
| 5 | 50602-K0Z-900 | PIN, MAIN STEP BAR JOINT | 2 | |
| 6 | 50603-K0Z-900 | PIN, STEP BAR JOINT | 2 | |
| 7 | 50617-K0Z-900 | SPRING, R. STEP RETURN | 1 | |
| 8 | 50627-K0Z-900 | SPRING, L. STEP RETURN | 1 | |
| 9 | 50650-K0Z-D00 | BRACKET COMP., L. MAIN STEP | 1 | |
| 10 | 50661-K0Z-900 | RUBBER, MAIN STEP | 2 | |
| 11 | 50701-K0Z-900 | BAR, R. MAIN STEP | 1 | |
| 12 | 50703-K0Z-900 | PLATE, STEP SETTING | 2 | |
| 13 | 50711-K0Z-900 | BAR, R. PILLION STEP | 1 | |
| 14 | 50712-K0Z-900 | BAR, L. PILLION STEP | 1 | |
| 15 | 50715-K3R-D00 | HOLDER, R. PILLION STEP | 1 | |
| 16 | 50718-K0Z-900 | PLATE, PILLION STEP CLICK | 2 | |
| 17 | 50725-K3R-D00 | HOLDER, L. PILLION STEP | 1 | |
| 18 | 50801-K0Z-900 | BAR, L. MAIN STEP | 1 | |
| 19 | 51486-K3R-D00 | COLLAR, STEP LOWER | 2 | |
| 22 | 90118-K0Z-900 | BOLT, SOCKET, 10X28 | 2 | |
| 23 | 90119-K0Z-900 | BOLT, SOCKET, 10X52 | 2 | |
| 24 | 90128-K0Z-900 | BOLT, MAIN STEP RUBBER SETTING | 4 | |
| 25 | 90302-K0Z-900 | CAP, RR. FORK PIVOT | 2 | |
| 26 | 90516-K0Z-900 | WASHER, PLAIN, 8MM | 4 | |
| 28 | 90901-KSS-900 | BALL, STEEL, #8 | 2 | |
| 29 | 92501-06035-0A | BOLT, HEX. CAP, 6X35 | 2 | |
| 30 | 95701-08028-08 | BOLT, FLANGE, 8X28 | 2 | |
