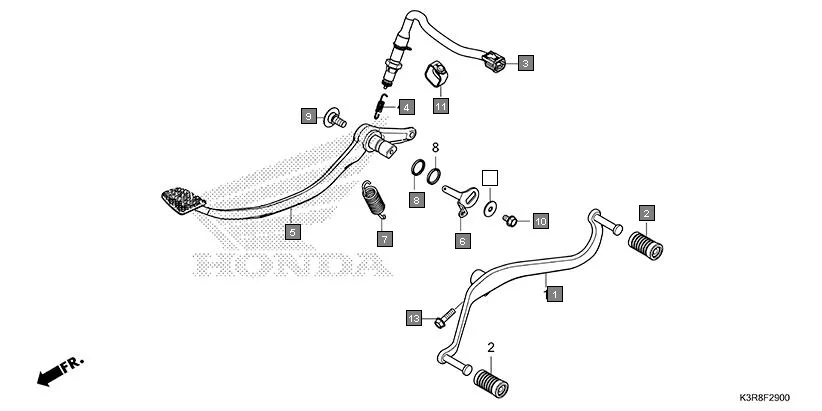

F-29 - PEDAL
HONDA CB350 CB350CR · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-K0Z-900 | PEDAL COMP., GEAR CHANGE | 1 | |
| 2 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 2 | |
| 3 | 35350-K0Z-D21 | SWITCH ASSY., RR. STOP | 1 | |
| 4 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 | |
| 5 | 46500-K0Z-900 | PEDAL COMP., RR. BRAKE | 1 | |
| 6 | 46510-K0Z-900 | STAY, RETURN SPRING | 1 | |
| 7 | 46513-K0Z-900 | SPRING, BRAKE RETURN | 1 | |
| 8 | 46525-KK0-003 | DUST SEAL, 17X20X2.5 | 2 | |
| 9 | 90113-K0Z-900 | BOLT, SPECIAL, 8X12 | 1 | |
| 10 | 90114-K0Z-900 | BOLT, FLANGE, 6X10 | 1 | |
| 12 | 94103-06800 | WASHER, PLAIN 6 MM | 1 | |
| 13 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
