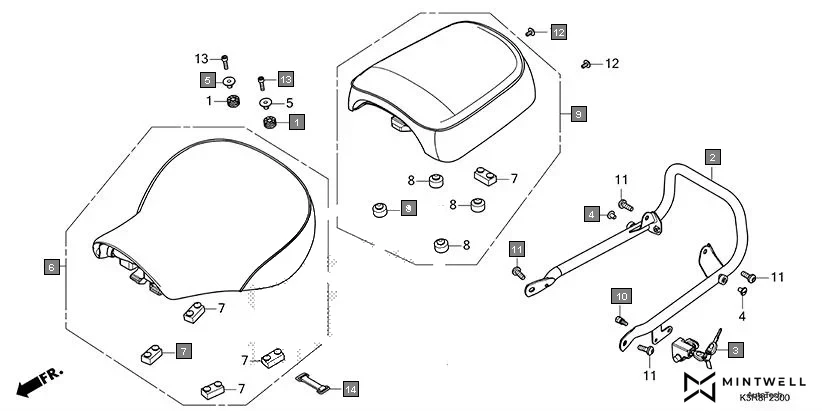

F-23 - SEAT
HONDA CB350 CB350CR · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 2 | |
| 2 | 50400-K3R-D00 | PIPE COMP., RR. GRIP | 1 | |
| 3 | 50730-K0Z-D01 | HOLDER ASSY., HELMET | 1 | |
| 5 | 61104-428-010 | COLLAR, FR. FENDER(WHITE)..... (FOR RR.) | 2 | |
| 6 | 77100-K3R-D01ZB | SEAT COMP., SINGLE *TYPE1* | 1 | |
| 7 | 77205-KPP-T00 | RUBBER, SEAT SETTING | 5 | |
| 8 | 77206-KTE-910 | RUBBER, SEAT SETTING | 4 | |
| 9 | 77300-K3R-D01ZB | SEAT ASSY., PILLION *TYPE1* | 1 | |
| 10 | 90107-K0Z-900 | BOLT, BREAK OFF | 1 | |
| 11 | 90111-K3R-D00 | BOLT, SOCKET SPECIAL, 8X23 | 4 | |
| 13 | 96600-06022-00 | SOCKET BOLT 6X22 | 2 | |
| 14 | 31501-K0Z-900 | BAND, BATTERY | 1 | |
