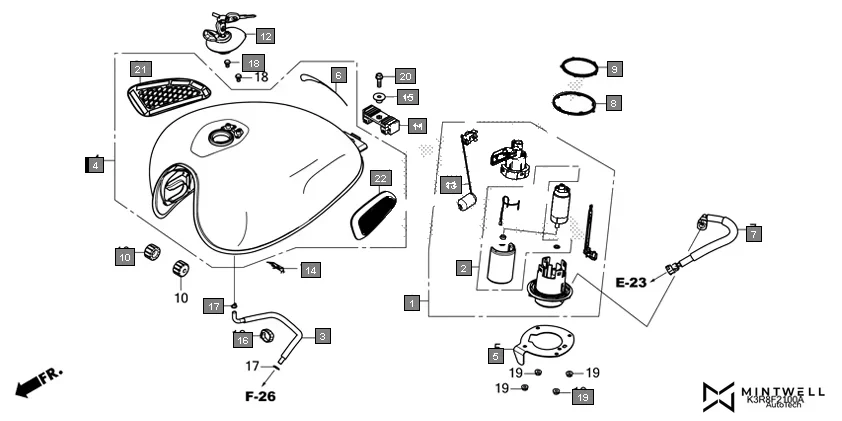

F-21 - FUEL TANK/FUEL PUMP
HONDA CB350 CB350CR · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-K0Z-D01 | PUMP ASSY., FUEL | 1 | |
| 2 | 16707-K94-T01 | FILTER SET | 1 | |
| 3 | 17411-K0Z-900 | TUBE, CHARGE | 1 | |
| 4 | 17500-K3R-D00ZA | TANK ASSY., FUEL(WL) *YR343M* MAT CRUST METALLIC | 1 | |
| 4 | 17500-K3R-D00ZB | TANK ASSY., FUEL(WL)*R396M* PRECIOUS RED METALLIC | 1 | |
| 4 | 17500-K3R-D00ZD | TANK ASSY., FUEL(WL)*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 4 | 17500-K3R-D00ZE | TANK ASSY., FUEL(WL)*GY156M* MAT MARSHAL GREEN METALLIC 2 | 1 | |
| 4 | 17500-K3R-D00ZF | TANK ASSY., FUEL(WL)*Y245* MAT DUNE BROWN | 1 | |
| 5 | 17506-K0Z-900 | PLATE, SETTING | 1 | |
| 6 | 17508-K0Z-J40 | FILM, TANK PROTECTOR | 1 | |
| 7 | 17528-K0Z-901 | HOSE COMP., FUEL FEED | 1 | |
| 8 | 17573-GHB-603 | SEAL, DUST | 1 | |
| 9 | 17574-GHB-601 | GASKET, FUEL PUMP | 1 | |
| 10 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 11 | 17613-K0Z-900 | CUSHION, RR. FUEL TANK | 1 | |
| 12 | 17620-K0Z-D01 | CAP COMP., FUEL FILLER | 1 | |
| 13 | 37800-K0Z-901 | FUEL UNIT | 1 | |
| 14 | 50211-K0Z-900 | GUARD, TANK | 1 | |
| 15 | 90324-KCJ-660 | COLLAR, FUEL TANK MOUNTING | 1 | |
| 16 | 90652-K0Z-900 | BAND, RUBBER(60) | 1 | |
| 17 | 90652-KWP-F00 | CLIP, TUBE(B8) | 2 | |
| 18 | 93500-05008-0H | SCREW, PAN, 5X8 | 2 | |
| 19 | 94050-06080 | NUT, FLANGE, 6MM | 4 | |
| 20 | 95701-08025-08 | BOLT, FLANGE, 8X25 | 1 | |
| 21 | 17541-K3R-D00 | PAD COMP., R. TANK | 1 | |
| 22 | 17546-K3R-D00 | PAD COMP., L. TANK | 1 | |
