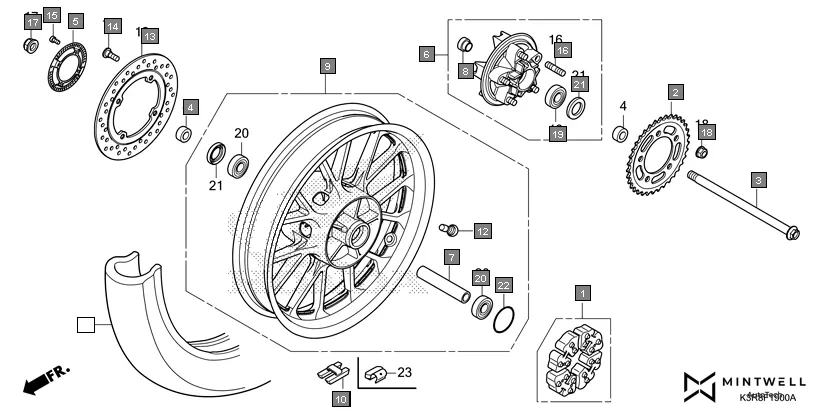

F-19 - REAR WHEEL
HONDA CB350 CB350CR · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-K0Z-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 41201-K0Z-901 | SPROCKET, FINAL DRIVEN(35T) | 1 | |
| 3 | 42301-K0Z-900 | AXLE, RR. WHEEL | 1 | |
| 4 | 42312-K0Z-900 | COLLAR, RR. WHEEL SIDE | 2 | |
| 5 | 42515-K0Z-900 | RING, RR. PULSER | 1 | |
| 6 | 42615-K0Z-900 | FLANGE SUB ASSY., RR. FINAL DRIVEN | 1 | |
| 7 | 42620-K0Z-900 | COLLAR, RR. AXLE DISTANCE | 1 | |
| 8 | 42625-K0Z-900 | COLLAR B, RR. AXLE DISTANCE | 1 | |
| 9 | 42650-K0Z-901 | WHEEL SUB ASSY., RR.(WOL)..... | 1 | |
| 10 | 42704-MER-D00 | WEIGHT, BALANCE(10G) | 1 | |
| 10 | 42705-MER-D00 | WEIGHT, BALANCE(20G) | 1 | |
| 10 | 42706-MER-D00 | WEIGHT, BALANCE(30G) | 1 | |
| 11 | 42711-K0Z-901 | TIRE, RR.(MRF) (130/70-18 M/C 63H) | 1 | |
| 13 | 43251-K0Z-901 | DISK, RR. BRAKE | 1 | |
| 16 | 90136-K0Z-900 | BOLT, STUD, 12X25 | 5 | |
| 17 | 90305-KYJ-711 | NUT, FLANGE, 16MM (PREVAILING TORQUE) | 1 | |
| 18 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 5 | |
| 19 | 91082-KYJ-711 | BEARING, RADIAL BALL, 6204UU (NEI) | 1 | |
| 20 | 91083-KYJ-711 | BEARING, RADIAL BALL, 6303UU (NEI) | 2 | |
| 21 | 91253-443-761 | DUST SEAL, 30X47X8(ARAI) | 2 | |
| 22 | 91351-MGS-D30 | O-RING, 55X2 | 1 | |
