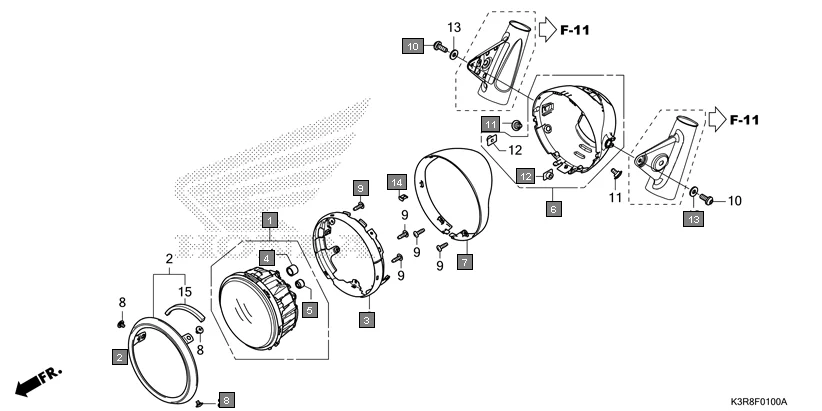

F-1 - HEADLIGHT
HONDA CB350 CB350CR · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K3R-D21 | HEADLIGHT ASSY. | 1 | |
| 2 | 33101-K3R-D00ZA | RIM, HEADLIGHT *NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 3 | 33102-K3R-D00 | STAY, HEADLIGHT RIM | 1 | |
| 4 | 33113-K07-M51 | PIPE, CP | 1 | |
| 5 | 33113-MEE-D01 | PIPE, CP | 1 | |
| 6 | 61302-K3R-D00 | CASE, HEADLIGHT | 1 | |
| 7 | 61303-K3R-D00ZA | GARNISH, HEADLIGHT*NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 8 | 90101-K3R-D00 | SCREW, SPECIAL, 5MM | 3 | |
| 9 | 90103-K3R-D00 | SCREW, TAPPING, 4X14 | 5 | |
| 10 | 90111-K0Z-900 | BOLT, SOCKET SPECIAL, 8X18 | 2 | |
| 12 | 90501-K3R-D00 | COLLAR, HEADLIGHT | 2 | |
| 13 | 90516-K3R-D00 | WASHER, PLAIN, 8MM | 2 | |
| 14 | 90651-K14-A31 | CLIP, SLIDE | 1 | |
