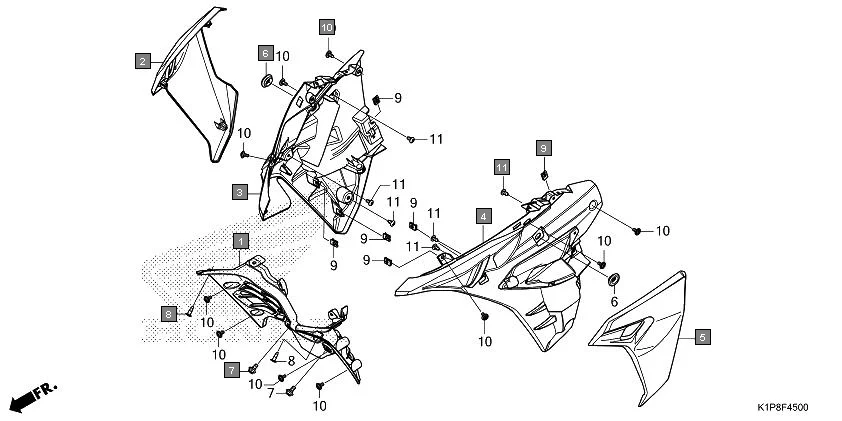

F-45 - MIDDLE COWL
HONDA CB200X CB190XS · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50271-K1P-D00 | GARNISH, SHROUD CENTER | 1 | |
| 2 | 64300-K1P-D00ZC | GARNISH SET, R. MIDDLE(WL) *NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 3 | 64311-K1P-D00 | COWL, R. MIDDLE | 1 | |
| 4 | 64321-K1P-D00 | COWL, L. MIDDLE | 1 | |
| 5 | 64400-K1P-D00ZC | GARNISH SET, L. MIDDLE(WL) *NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 7 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
