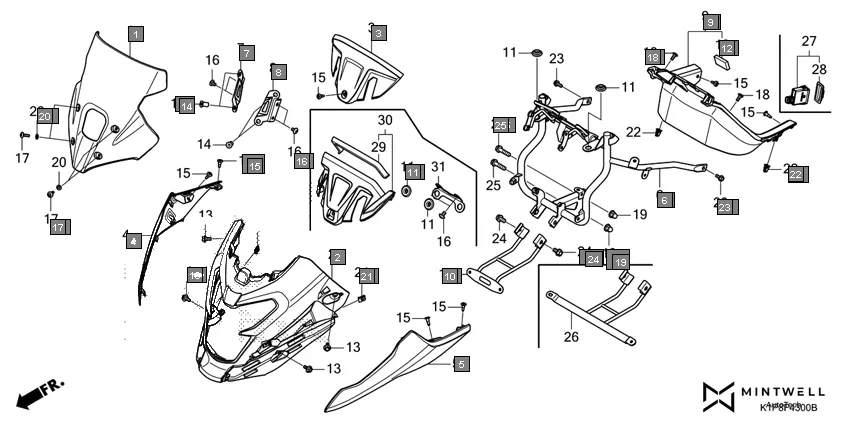

F-43 - FRONT COWL
HONDA CB200X CB190XS · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61300-K1P-D00ZA | VISOR SET, FR.(WL) *TYPE1* | 1 | |
| 2 | 61302-K1P-D00 | COWL, FR. | 1 | |
| 3 | 61304-K1P-D00 | COVER, FR. UPPER | 1 | |
| 4 | 61305-K1P-D00ZA | GARNISH, R. FR. *R393* SPORTS RED 2 | 1 | |
| 4 | 61305-K1P-D00ZB | GARNISH, R. FR. *NHC48P* PEARL NIGHTSTAR BLACK 2 | 1 | |
| 4 | 61305-K1P-D00ZC | GARNISH, R. FR. *NHC40M* MAT SELENE SILVER METALLIC 2 | 1 | |
| 4 | 61305-K1P-D00ZD | GARNISH, R. FR. *B236M* DECENT BLUE METALLIC | 1 | |
| 5 | 61306-K1P-D00ZA | GARNISH, L. FR. *R393* SPORTS RED 2 | 1 | |
| 5 | 61306-K1P-D00ZB | GARNISH, L. FR. *NHC48P* PEARL NIGHTSTAR BLACK 2 | 1 | |
| 5 | 61306-K1P-D00ZC | GARNISH, L. FR. *NHC40M* MAT SELENE SILVER METALLIC 2 | 1 | |
| 5 | 61306-K1P-D00ZD | GARNISH, L. FR. *B236M* DECENT BLUE METALLIC | 1 | |
| 6 | 64221-K1P-D00 | STAY COMP., FR. COWL | 1 | |
| 7 | 64230-K1P-D00 | STAY, R. VISOR | 1 | |
| 8 | 64240-K1P-D00 | STAY, L. VISOR | 1 | |
| 9 | 64260-K1P-D00 | PANEL SET, METER | 1 | |
| 10 | 64315-K1P-D00 | BRAKET COMP., FR. NUMBER PLATE | 1 | |
| 12 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 14 | 90111-MM9-000 | NUT, COWL SETTING, 5MM | 4 | |
| 15 | 90116-SP0-003 | CLIP, BUMPER SEAL | 7 | |
| 16 | 90132-KPP-T00 | SCREW, PAN, 6X10 | 4 | |
| 17 | 90134-K0E-D00 | SCREW, PAN, 5X18 | 4 | |
| 18 | 90134-K43-900 | SCREW, PAN, 5X14 | 2 | |
| 19 | 90307-KYJ-710 | NUT, CAP, 8MM | 2 | |
| 20 | 90504-964-000 | WASHER, THRUST, 5MM | 4 | |
| 21 | 90654-K0L-D00 | NUT, CLIP, 5MM | 2 | |
| 22 | 90666-K59-A11 | CLIP, SNAP FITTING(PO) | 2 | |
| 23 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 2 | |
| 24 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 2 | |
| 25 | 95801-08032-00 | BOLT, FLANGE, 8X32 | 2 | |
