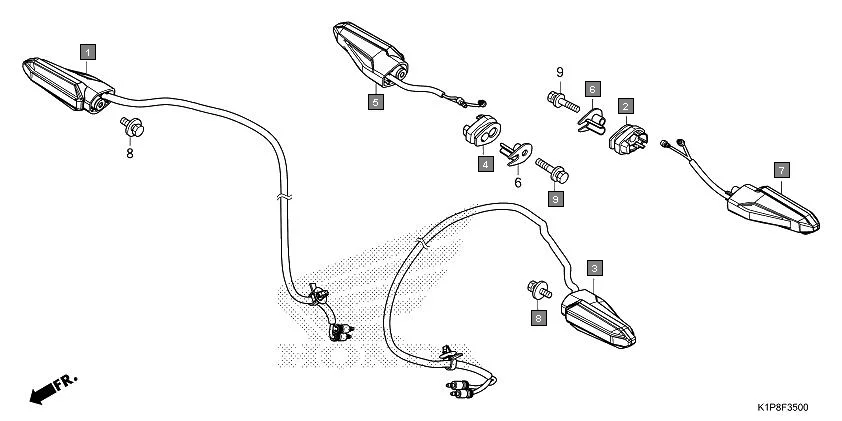

F-35 - WINKER
HONDA CB200X CB190XS · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-K1P-D01 | WINKER ASSY., R. FR.(FIEM) | 1 | |
| 2 | 33412-K15-920 | RUBBER, R. WINKER MOUNTING (L. RR.) | 1 | |
| 3 | 33450-K1P-D01 | WINKER ASSY., L. FR.(FIEM) | 1 | |
| 4 | 33452-K15-920 | RUBBER, L. WINKER MOUNTING (R. RR.) | 1 | |
| 5 | 33600-K1L-D01 | WINKER ASSY., R. RR.(FIEM) | 1 | |
| 6 | 33611-K1L-D00 | COLLAR, WINKER | 2 | |
| 7 | 33650-K1L-D01 | WINKER ASSY., L. RR.(FIEM) | 1 | |
| 8 | 93404-05014-00 | BOLT-WASHER, 5X14 | 2 | |
| 9 | 93411-05025-00 | BOLT-WASHER, 5X25 | 2 | |
