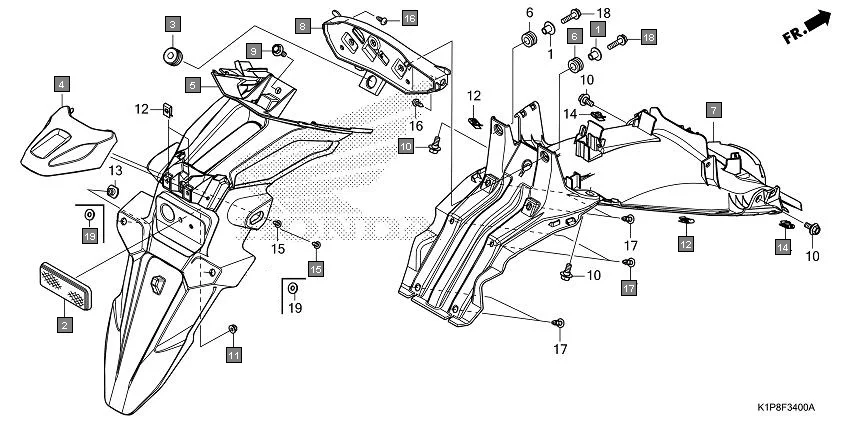

F-34 - REAR FENDER
HONDA CB200X CB190XS · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 3 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 1 | |
| 4 | 80100-K1L-D00ZA | COVER SET, LICENSE LIGHT(WL) *TYPE1* | 1 | |
| 5 | 80111-K1L-D00 | FENDER A, RR. | 1 | |
| 6 | 80112-KVN-900 | RUBBER, RR FENDER | 2 | |
| 7 | 80121-K1L-D00 | FENDER B, RR. | 1 | |
| 8 | 80131-K1L-D00 | STAY, INNER FENDER | 1 | |
| 9 | 90111-147-000 | BOLT, FLANGE, 6MM | 1 | |
| 12 | 90302-KWW-A00 | NUT, SPRING, 4MM | 4 | |
| 16 | 93903-35220 | SCREW, TAPPING, 5X12 | 2 | |
| 17 | 93903-35380 | SCREW TAPPING 5X16 | 6 | |
| 19 | 90501-K0Y-D00 | WASHER, PLAIN, 5MM | 2 | |
