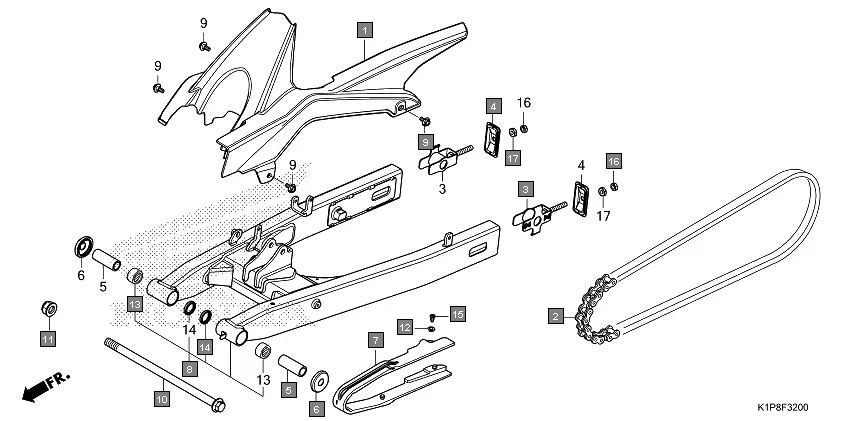

F-32 - SWINGARM/CHAIN CASE
HONDA CB200X CB190XS · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40511-K1L-D00 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40530-K43-D01 | CHAIN, DRIVE(LGB) (R428NOR-132LE) | 1 | |
| 3 | 40543-KYJ-900 | ADJUSTER COMP., CHAIN | 2 | |
| 4 | 40546-KYJ-900 | CAP, SWINGARM END | 2 | |
| 5 | 52141-KSP-900 | COLLAR, SWINGARM PIVOT | 2 | |
| 6 | 52144-GC4-003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 | |
| 7 | 52170-K43-D00 | SLIDER, CHAIN | 1 | |
| 8 | 52200-K1L-D00ZA | SWINGARM SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 10 | 90121-KSP-900 | BOLT, SWINGARM PIVOT | 1 | |
| 11 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 12 | 90556-MB4-000 | WASHER, FR. SIDE COVER | 1 | |
| 13 | 91071-KSP-901 | BEARING, NEEDLE, 20X26X20 | 2 | |
| 14 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 2 | |
| 15 | 93901-25110 | SCREW, TAPPING, 5X10 | 1 | |
| 16 | 94002-08000-0S | NUT HEX.8 MM | 2 | |
| 17 | 94031-08000 | NUT, HEX., 8MM | 2 | |
