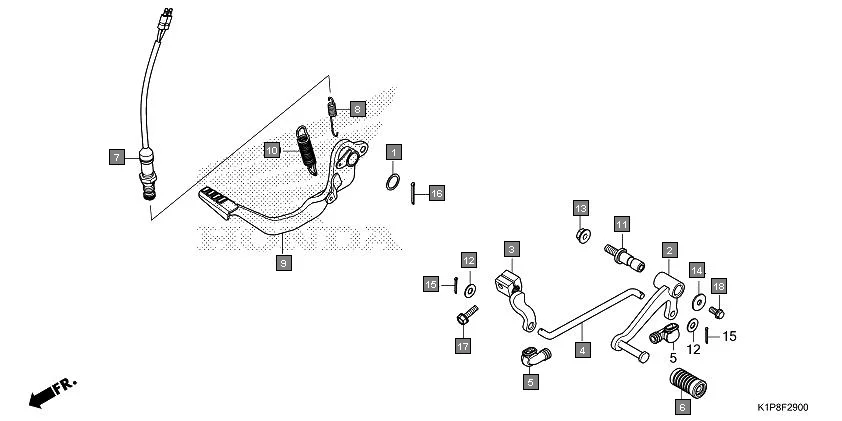

F-29 - PEDAL
HONDA CB200X CB190XS · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16502-880-000 | WASHER, SWITCH BOSS | 1 | |
| 2 | 24701-K43-900 | PEDAL, GEAR CHANGE | 1 | |
| 3 | 24711-K43-900 | ARM, GEAR CHANGE | 1 | |
| 4 | 24720-K43-900 | ROD, TIE | 1 | |
| 5 | 24721-GS3-000 | COVER,CHANGE PEDAL | 2 | |
| 6 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 7 | 35350-KYJ-611 | SWITCH ASSY., RR. STOP | 1 | |
| 8 | 35357-KBA-900 | SPRING, STOP SWITCH | 1 | |
| 9 | 46500-K43-910 | PEDAL COMP., BRAKE | 1 | |
| 10 | 46514-KN5-670 | SPG. BRAKE PEDAL | 1 | |
| 11 | 50643-KYJ-900 | PIVOT, CHANGE PEDAL | 1 | |
| 12 | 90502-K43-900 | WASHER, PLAIN, 7MM | 2 | |
| 13 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 14 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
| 15 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 16 | 94201-25220 | PIN, SPLIT, 2.5X22 | 1 | |
| 17 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
