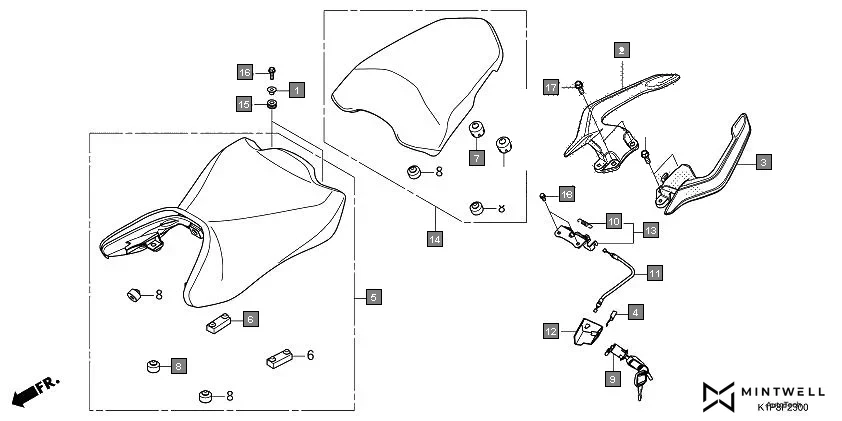

F-23 - SEAT
HONDA CB200X CB190XS · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 2 | |
| 2 | 50400-K1P-D00ZB | GRIP, R. RR. *NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 3 | 50450-K1P-D00ZB | GRIP, L. RR. *NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 4 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 5 | 77100-K1P-D01 | SEAT COMP., SINGLE | 1 | |
| 6 | 77205-286-000 | RUBBER `B SEAT SETTING | 2 | |
| 7 | 77206-KFN-850 | RUBBER SEAT CUSHION | 2 | |
| 8 | 77206-KTE-910 | RUBBER, SEAT SETTING | 5 | |
| 9 | 77225-K43-901 | LOCK ASSY., SEAT | 1 | |
| 10 | 77234-K1K-D00 | SPRING, SEAT LOCK | 1 | |
| 11 | 77240-K43-900 | CABLE, SEAT LOCK | 1 | |
| 12 | 77241-K1P-D00 | STAY, SEAT LOCK CABLE | 1 | |
| 13 | 77250-K1K-D00 | LOCK COMP., SEAT | 1 | |
| 14 | 77300-K1P-D01 | SEAT COMP., PILLION | 1 | |
| 15 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 16 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 17 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
| 18 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 | |
