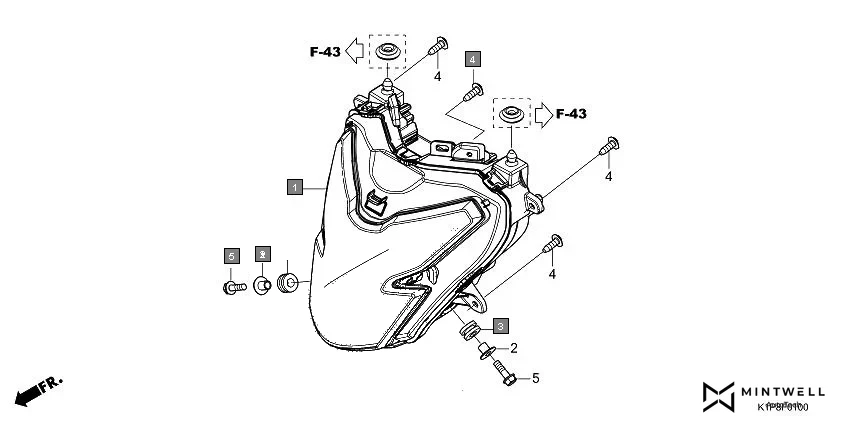

F-1 - HEADLIGHT
HONDA CB200X CB190XS · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K1L-D01 | HEADLIGHT ASSY.(KOITO) | 1 | |
| 2 | 33111-K1L-D00 | COLLAR, HEADLIGHT MOUNTING | 2 | |
| 3 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 4 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
| 5 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
