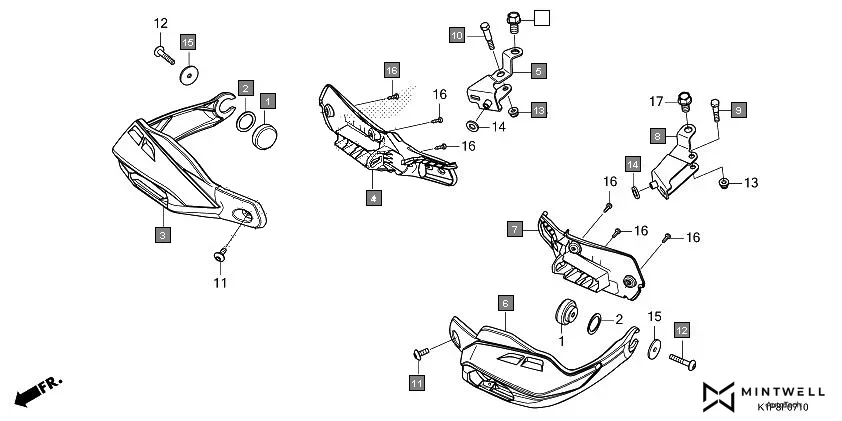

F-7-10 - KNUCKLE COVER
HONDA CB200X CB190XR · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53104-K1P-D00 | WEIGHT B, STEERING HANDLE | 2 | |
| 2 | 53109-MJP-G50 | RUBBER, KNUCKLE GUARD | 2 | |
| 3 | 53180-K1P-D00 | COVER, R. KNUCKLE | 1 | |
| 4 | 53181-K1P-D00 | COVER, R. WINKER | 1 | |
| 5 | 53182-K1P-D00 | STAY, R. KNUCKLE COVER | 1 | |
| 6 | 53185-K1P-D00 | COVER, L. KNUCKLE | 1 | |
| 7 | 53186-K1P-D00 | COVER, L. WINKER | 1 | |
| 8 | 53192-K1P-D00 | STAY, L. KNUCKLE COVER | 1 | |
| 9 | 90114-K1P-D00 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 10 | 90115-K1P-D00 | BOLT, HANDLE LEVER | 1 | |
| 11 | 90130-K1P-D00 | SCREW, PAN, 6X15 | 2 | |
| 12 | 90172-K1P-D00 | SCREW, PAN, 6X35 | 2 | |
| 13 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 14 | 90504-K1P-D00 | RUBBER, 17MM | 2 | |
| 15 | 90508-K1P-D00 | WASHER, PLAIN, 6MM | 2 | |
| 17 | 95701-10018-07 | BOLT, FLANGE, 10X18 | 2 | |
