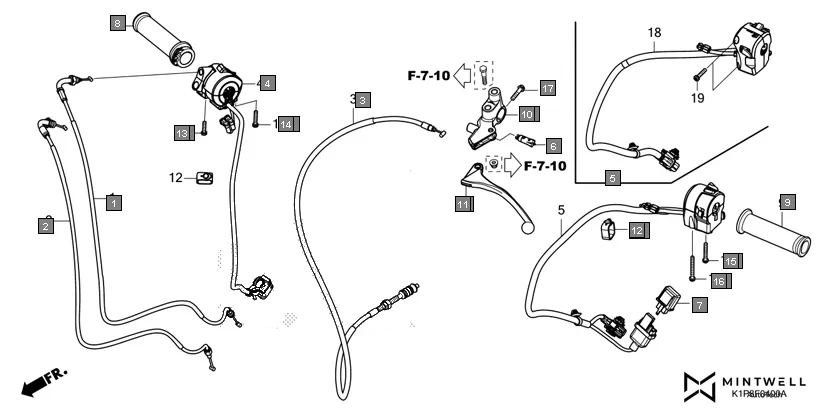

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA CB200X CB190XR · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K1P-D11 | CABLE COMP. A, THROTTLE | 1 | |
| 2 | 17920-K1P-D11 | CABLE COMP. B, THROTTLE | 1 | |
| 3 | 22870-K1P-D11 | CABLE COMP., CLUTCH | 1 | |
| 4 | 35150-K1P-D01 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 5 | 35200-K1P-D01 | SWITCH ASSY., WINKER | 1 | |
| 6 | 35330-KYJ-611 | SWITCH ASSY., CLUTCH | 1 | |
| 7 | 38301-K1L-D01 | RELAY COMP., WINKER(L.E.D.) | 1 | |
| 8 | 53140-KYJ-900 | GRIP COMP., THROTTLE | 1 | |
| 9 | 53166-KYJ-900 | GRIP, L. HANDLE | 1 | |
| 10 | 53172-K1P-D00 | BRACKET, L. HANDLE LEVER | 1 | |
| 11 | 53178-K21-900 | LEVER COMP., L. HANDLE | 1 | |
| 12 | 90652-K0Z-900 | BAND, RUBBER(60) | 2 | |
| 13 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 14 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 15 | 93892-05035-07 | SCREW, WASHER, 5X35 | 1 | |
| 16 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
