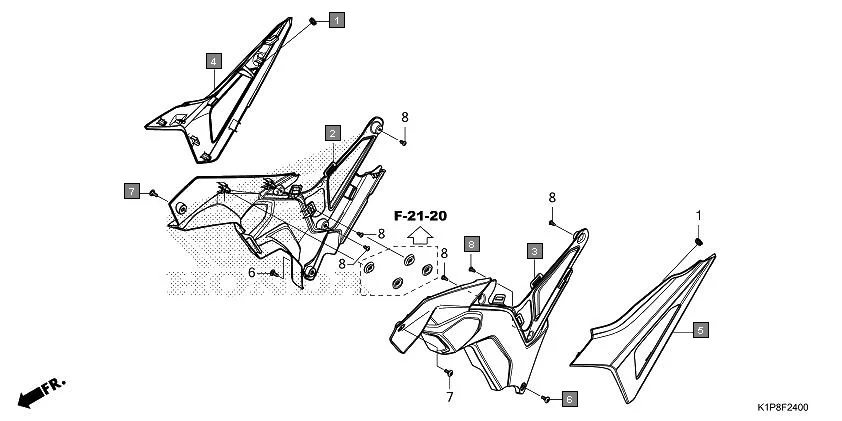

F-24 - SIDE COVER
HONDA CB200X CB190XR · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64413-KSS-C00 | GROMMET, BODY COVER | 2 | |
| 2 | 83531-K1P-D00 | COVER A, R. SIDE | 1 | |
| 3 | 83541-K1P-D00 | COVER A, L. SIDE | 1 | |
| 4 | 83560-K1P-D00ZB | COVER SET B, R. SIDE(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 5 | 83570-K1P-D00ZB | COVER SET B, L. SIDE(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 2 | |
