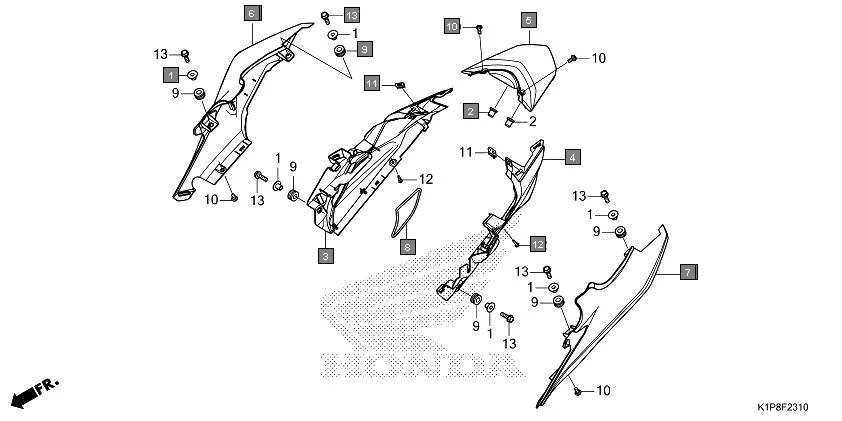

F-23-10 - REAR COWL
HONDA CB200X CB190XR · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 6 | |
| 3 | 77211-K1P-D00 | COWL, R. RR. | 1 | |
| 4 | 77221-K1P-D00 | COWL, L. RR. | 1 | |
| 5 | 77231-K1P-D00 | COWL, RR. CENTER | 1 | |
| 6 | 77271-K1P-D00ZA | GARNISH, R. RR. *R393* SPORTS RED 2 | 1 | |
| 6 | 77271-K1P-D00ZB | GARNISH, R. RR. *NHC48P* PEARL NIGHTSTAR BLACK 2 | 1 | |
| 6 | 77271-K1P-D00ZC | GARNISH, R. RR. *NHC40M* MAT SELENE SILVER METALLIC 2 | 1 | |
| 6 | 77271-K1P-D00ZD | GARNISH, R. RR. *B236M* DECENT BLUE METALLIC | 1 | |
| 7 | 77281-K1P-D00ZA | GARNISH, L. RR. *R393* SPORTS RED 2 | 1 | |
| 7 | 77281-K1P-D00ZB | GARNISH, L. RR. *NHC48P* PEARL NIGHTSTAR BLACK 2 | 1 | |
| 7 | 77281-K1P-D00ZC | GARNISH, L. RR. *NHC40M* MAT SELENE SILVER METALLIC 2 | 1 | |
| 7 | 77281-K1P-D00ZD | GARNISH, L. RR. *B236M* DECENT BLUE METALLIC | 1 | |
| 8 | 80124-K26-900 | BAND, TOOL | 1 | |
| 11 | 90320-KTE-600 | NUT, SPRING, 5MM | 2 | |
| 12 | 93903-24480 | SCREW, TAPPING, 4X16 | 2 | |
