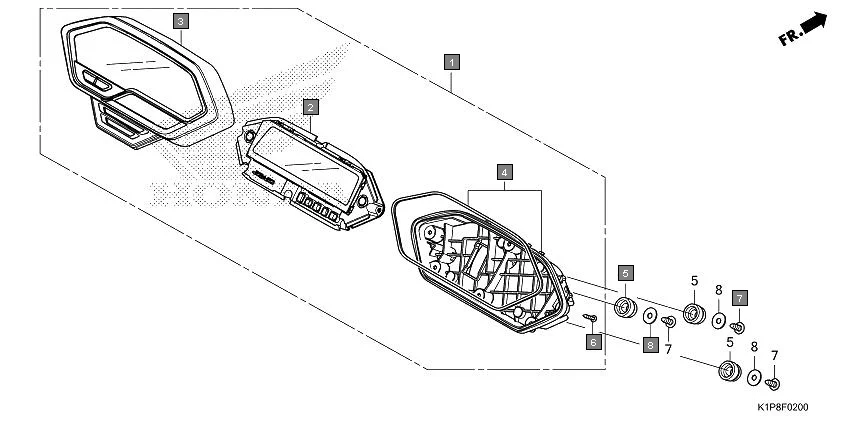

F-2 - METER
HONDA CB200X CB190XR · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K1L-D01 | METER ASSY., COMBINATION (VISTEON) | 1 | |
| 1 | 37100-K1L-D11 | METER ASSY., COMBINATION (VISTEON) | 1 | |
| 2 | 37101-K1L-D11 | METER COMP., LCD(KPH) | 1 | |
| 2 | 37101-K1L-D01 | METER COMP., LCD(KPH) | 1 | |
| 3 | 37102-K1L-D01 | CASE ASSY., UPPER | 1 | |
| 3 | 37102-K1L-D11 | CASE ASSY., UPPER | 1 | |
| 4 | 37103-K1L-D01 | CASE ASSY., UNDER | 1 | |
| 5 | 37215-KZZ-900 | RUBBER, METER SETTING | 3 | |
| 6 | 90314-KVS-F22 | SCREW, TAPPING, 3X14 | 6 | |
| 7 | 93913-25380 | SCREW, TAPPING, 5X14(PO) | 3 | |
| 8 | 94103-05700 | WASHER, PLAIN, 5MM | 3 | |
