52487-KWS-901
COLLAR, RUBBER BUSH(GABRIEL)
Qty Required: 2
Ref #1 in Assembly
Part of Assembly

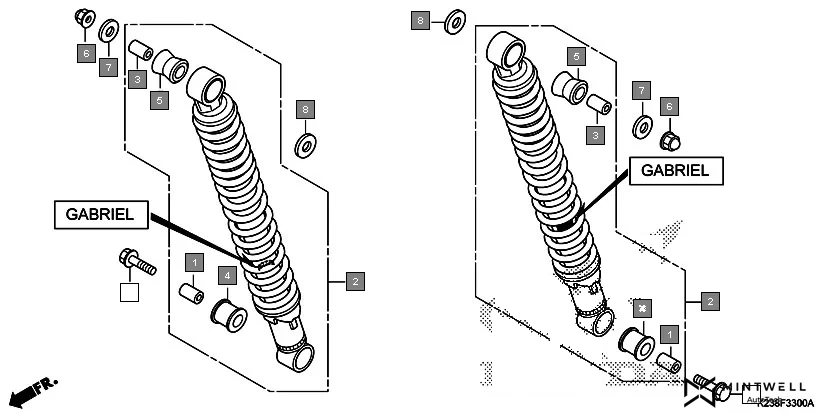

F-33
REAR CUSHION(GABRIEL)
10 parts in this assembly
Assembly Diagram
Ref #1
Supported Vehicles97
Related Parts
52400-K23-901
CUSHION ASSY., RR.(GABRIEL)
52486-KWS-901
COLLAR, RUBBER BUSH(GABRIEL)
52489-K23-901
BUSH, RUBBER(GABRIEL)
52489-KWS-901
BUSH, RUBBER(GABRIEL)
90301-K23-900
NUT, FLANGE CAP, 10MM
90551-KTE-910
WASHER SPECIAL, 10 MM
