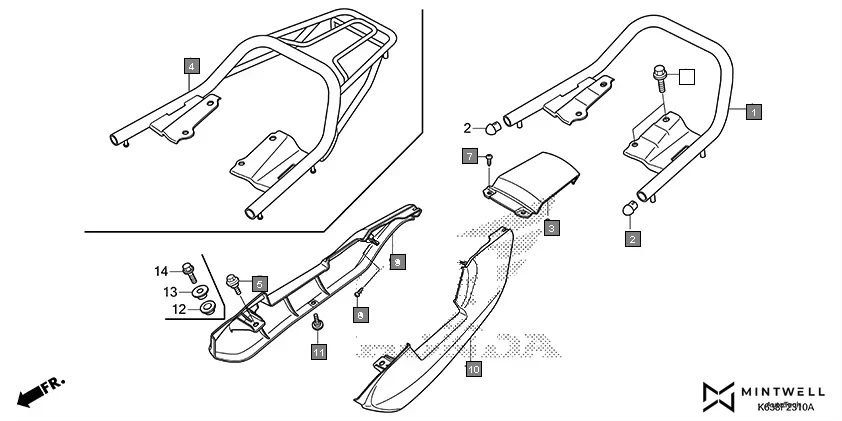

F-23-10 - REAR COWL
HONDA CD 110 Dream CB110C2K · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K63-D30 | GRIP COMP., RR. | 1 | |
| 2 | 81220-K63-E40 | CAP, RR. GRIP END | 2 | |
| 2 | 50415-KTE-910 | CAP, RR. GRIP END | 2 | |
| 3 | 77280-K63-D30ZA | COWL SET, RR. CENTER(WL) *TYPE1* | 1 | |
| 4 | 81200-K63-E40 | CARRIER COMP., RR. | 1 | |
| 5 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
| 7 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 8 | 95701-08014-08 | BOLT, FLANGE, 8X14 | 4 | |
| 9 | 77246-K63-D30 | COWL, R. RR. | 1 | |
| 10 | 77256-K63-D30 | COWL, L. RR. | 1 | |
| 11 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
