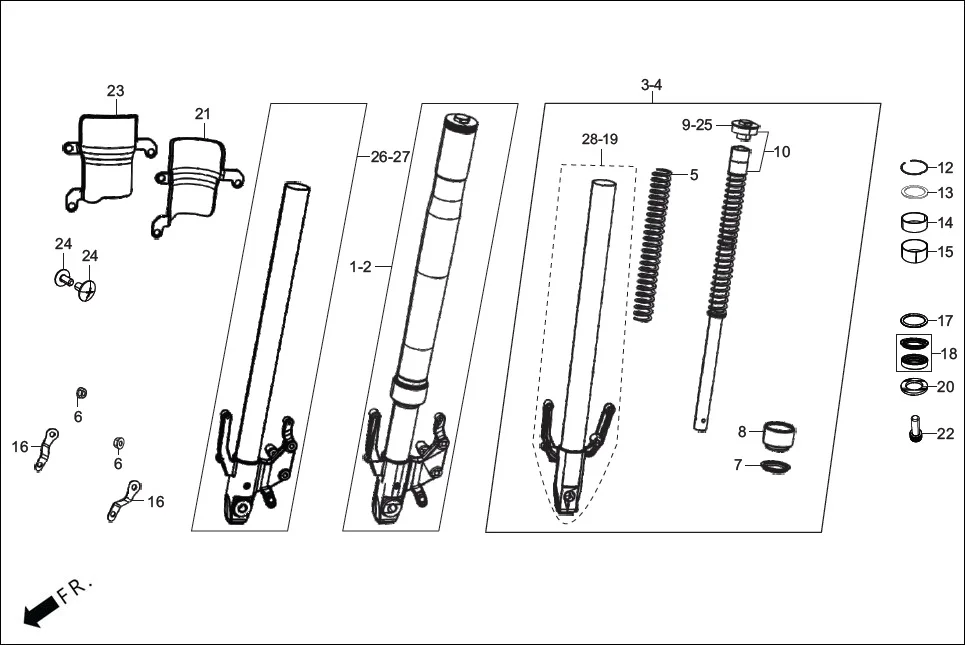

F-8 - FRONT CUSHION / STRG. STEM
Hero XTREME 250R(Mar., 2025) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-ACW-000 | FORK ASSY R FRONT | 1 | |
| 2 | ACWAC3H019000G | FORK FRONT RH ASSY | 1 | |
| 3 | 51500-ACW-000 | FORK ASSY L FRONT | 1 | |
| 4 | ACWAC3H018000G | FORK FRONT LH ASSY | 1 | |
| 5 | 51401-ACW-000 | SPRING FR FORK | 2 | |
| 7 | 51425-ACW-000 | SEAL DUST | 2 | |
| 8 | 51433-ACW-000 | OUTER DUST SEAL | 2 | |
| 9 | 90123-ACW-000 | BOLT FRONT FORK | 2 | |
| 10 | ACWAC3H009000G | CARTRIDGE ASSY | 2 | |
| 11 | ACWAC3H022000G | CARTRIDGE ASSY | 2 | |
| 12 | ACWAC3H000000G | RING OIL SEAL STOP | 2 | |
| 13 | ACWAC3H002000G | RING BACKUP (PLAIN WASHER) | 2 | |
| 14 | ACWAC3H003000G | GUIDE BUSH | 2 | |
| 15 | ACWAC3H004000G | SLIDE BUSH | 2 | |
| 16 | 51414-ACW-000 | STAY REFLEX REFLECTOR | 2 | |
| 17 | ACWAC3H006000G | O RING | 2 | |
| 18 | ACWAC3H008000G | SEAL SET FR FORK | 2 | |
| 19 | ACABC3H008000G | CLAMP AXLE WITH PIPE FORK LH ASSY | 1 | |
| 20 | ACWAC3H012000G | WASHER SPECIAL FORK | 2 | |
| 21 | 51506-ACW-000 | FORK PROTECTOR LH | 1 | |
| 22 | ACWAC3H016000G | SCREW CHEESE HEAD | 2 | |
| 23 | 51507-ACW-000 | FORK PROTECTOR RH | 1 | |
| 24 | 90107-ABZ-000 | SCREW MUFF. PROTECTOR | 2 | |
| 25 | ACWAC3H021000G | BOLT FORK FRONT | 2 | |
| 26 | ACWAC3H014000G | CLAMP AXLE WITH PIPE FORK RH ASSY | 1 | |
| 27 | ACABC3H009000G | CLAMP AXLE WITH PIPE FORK RH ASSY | 1 | |
