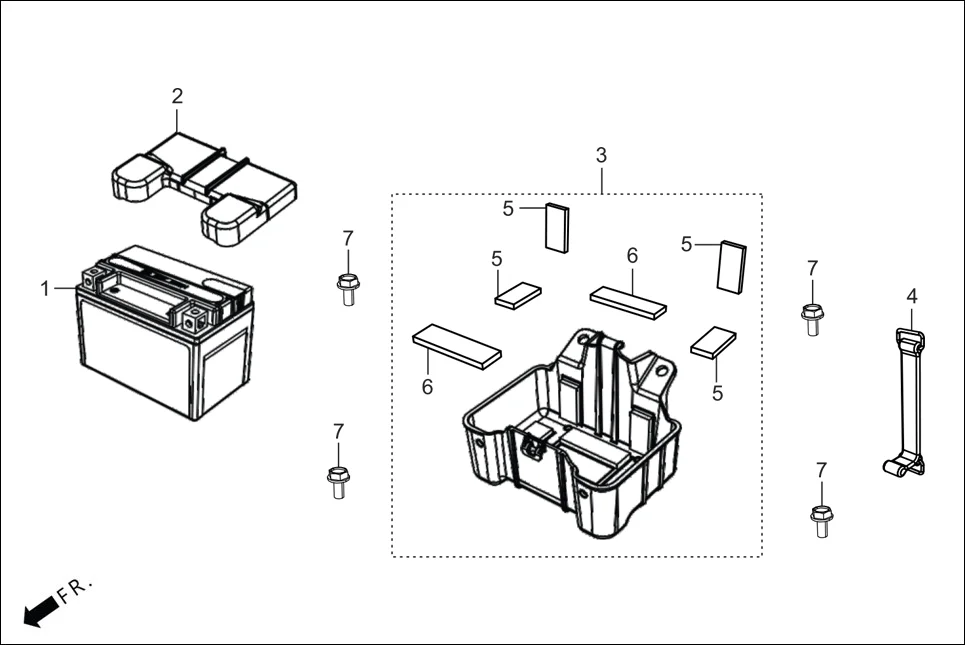

F-24A - BATTERY ASSY.
Hero XTREME 250R(Mar., 2025) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-ACD-001 | BATTERY ASSY ETZ9 | 1 | |
| 2 | 50325-ACW-000 | BATTERY PROTECTION COVER | 1 | |
| 3 | 1723A-ACW-000 | BOX BATTERY ASSY | 1 | |
| 4 | 50327-AAB-A00 | BAND BATTERY | 1 | |
| 5 | 83407-KTR-940 | RUBBER, BATTERY | 4 | |
| 6 | 83403-ABZ-000 | CUSHION BATTERY | 2 | |
