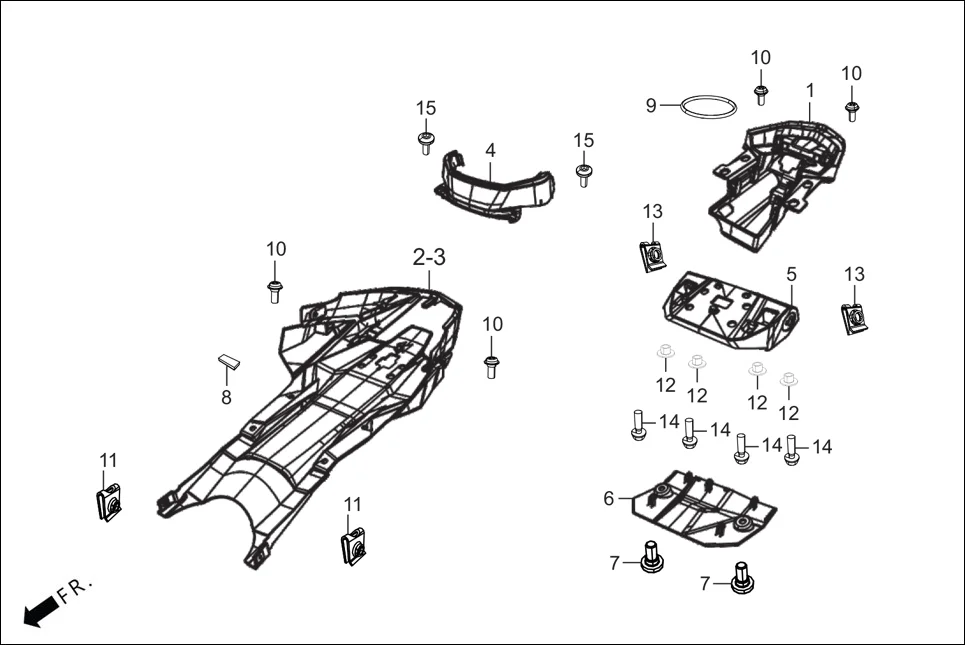

F-12 - BODY COVER
Hero XTREME 250R(Mar., 2025) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77230-ACW-000 | COWL INNER REAR | 1 | |
| 2 | ACWAB0A002000G | COWL CENTER REAR SUB ASSY | 1 | |
| 3 | 88150-ACW-000 | TAIL LIGHT COVER | 1 | |
| 4 | 77240-ACW-000 | PILLION FRONT COVER | 1 | |
| 5 | 88151-ACW-000 | COVER WINKER REAR | 1 | |
| 6 | 88152-ACW-000 | CAP WINKER REAR | 1 | |
| 7 | 90001-05012-03 | SOCKET BOLT SPL M5X12 | 2 | |
| 8 | 83407-ACJ-000 | CUSHION BATTERY | 1 | |
| 9 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 11 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 12 | 90501-KCC-870 | COLLAR, FR. FENDER SET | 4 | |
| 13 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 14 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 15 | 97200-06018-0F | SOCKET BOLT 6X18 | 2 | |
