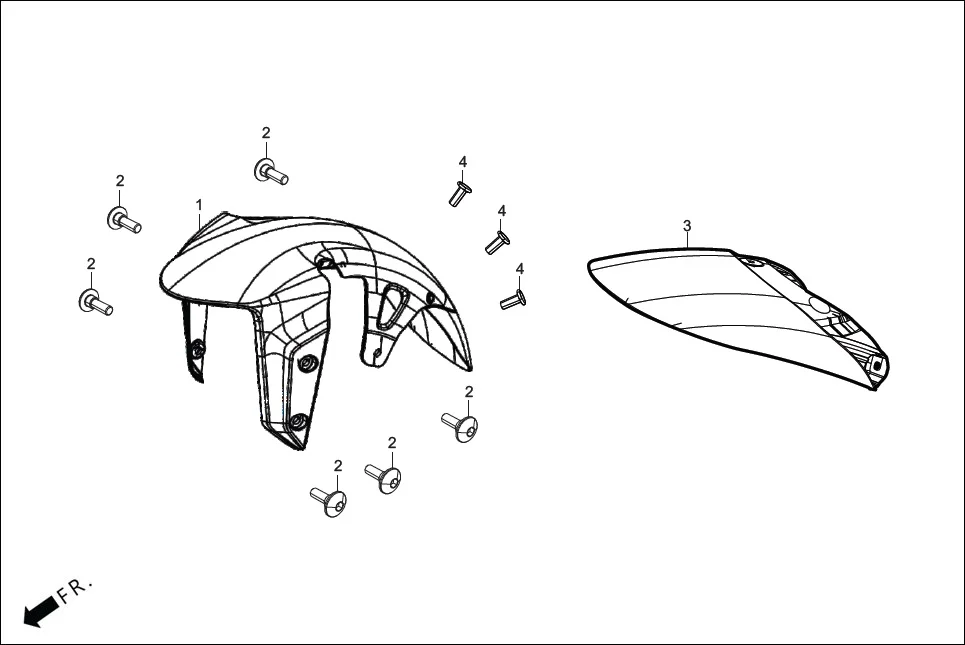

F-6 - FRONT FENDER
Hero XTREME 250R(Mar., 2025) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACWAS6A0000ARG | SET FENDER FRONT (PEARL RED) | 1 | |
| 1 | ACWAS6A0000AYG | SET FENDER FRONT (PEARL BLACK) | 1 | |
| 1 | ACWAS6A0100ATG | SET FENDER FRONT (FORCE SILVER ME.) | 1 | |
| 2 | SFBLTA008G | BOLT ALLEN M6X1.0X20X6.8_AA | 6 | |
| 3 | 61150-ACW-000 | MUDGUARD FRONT FENDER | 1 | |
| 4 | 90853-ACW-000 | RIVET 4 MM | 3 | |
