F-3A-MIRROR ASSY.

HeroXTREME 250R(Mar., 2025) · 4 parts

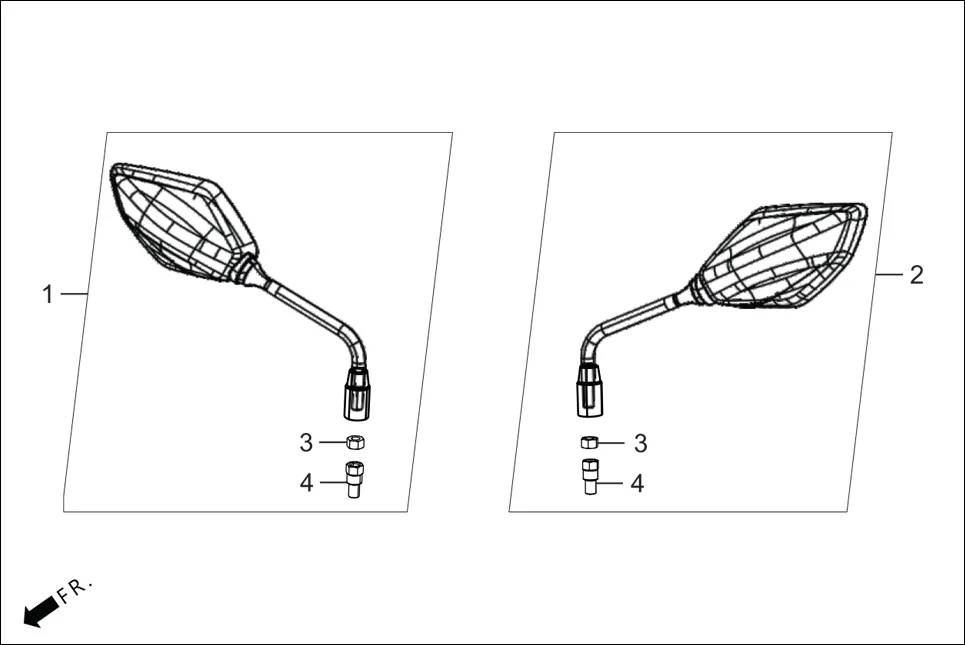

F-3A MIRROR ASSY. assembly diagram for Hero XTREME 250R(Mar., 2025)

Parts in This Assembly (4)

Ref #Part NumberDescriptionQty
188110-ACW-001FMIRROR ASSY R BACK (MAT BLACK)1
288120-ACW-001FMIRROR ASSY L BACK (MAT BLACK)1
390201-MW3-620NUT, HEX., 10MM2
490003-MY5-720BOLT,ADPT.10MM2
