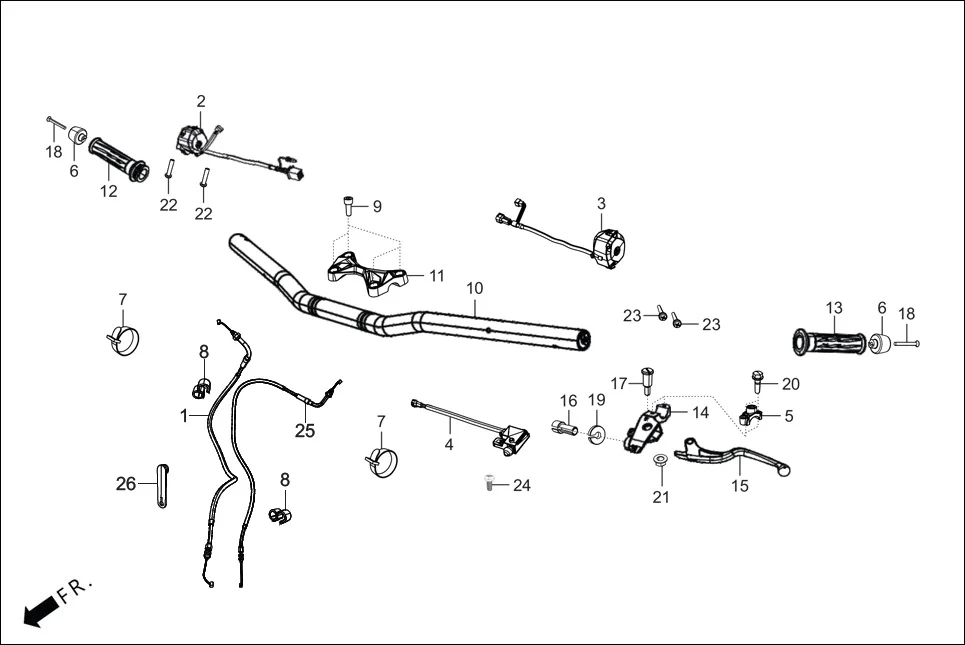

F-3 - CHANDLE & HNDL COVER
Hero XTREME 250R(Mar., 2025) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ACW-000 | CABLE COMP THROT A | 1 | |
| 2 | 35150-ACW-001 | SWITCH ASSY ENG STOP START HAZARD AND PANIC | 1 | |
| 3 | ACWAA7L000000G | SWITCH WINKER ASSY | 1 | |
| 4 | ACWAA7L001000G | SWITCH COMP FRONT LEVER | 1 | |
| 5 | 45517-ACP-010 | CLAMP LEVER | 1 | |
| 6 | 53104-AAK-900 | WEIGHT STRG HNDL | 2 | |
| 7 | 32161-RAA-000 | BAND B1 WIRE | 2 | |
| 8 | ACYBF2M000000G | CLIP TWO WAY | 2 | |
| 9 | 96600-08025-0W | SOCKET BOLT 8X25 | 4 | |
| 10 | 53100-ACW-000 | PIPE STRG HANDLE | 1 | |
| 11 | 53131-ACW-000 | HOLDER HANDLE UP | 1 | |
| 12 | 53140-ACA-000 | GRIP COMP THROT | 1 | |
| 13 | 53166-KVE-860 | GRIP L HANDLE | 1 | |
| 14 | 53172-ACD-000 | BRACKET HANDLE LEVER | 1 | |
| 15 | 53178-ACD-000 | LEVER COMP.L STRG.HNDL | 1 | |
| 16 | 53192-349-690 | BOLT WIRE ADJUST | 1 | |
| 17 | 90113-RAA-000 | BOLT HNDL LEVER PIVOT | 1 | |
| 18 | 90191-KVE-860 | SCREW OVAL 6X55 | 2 | |
| 19 | 90321-MR8-000 | NUT FIXING | 1 | |
| 20 | 96001-06022-0F | BOLT FLANGE SH 6X22 | 2 | |
| 21 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 22 | 93500-05022-1G | SCREW, PAN, 5 X 22 | 2 | |
| 23 | 93892-05035-07 | SCREW, WASHER, 5X35 | 2 | |
| 24 | 93500-04010-1H | SCREW,PAN,4 X 10 | 1 | |
| 25 | 17920-ACW-000 | CABLE COMP THROT B | 1 | |
| 26 | 50554-RAA-000 | CABLE TIE BAND M | 1 | |
