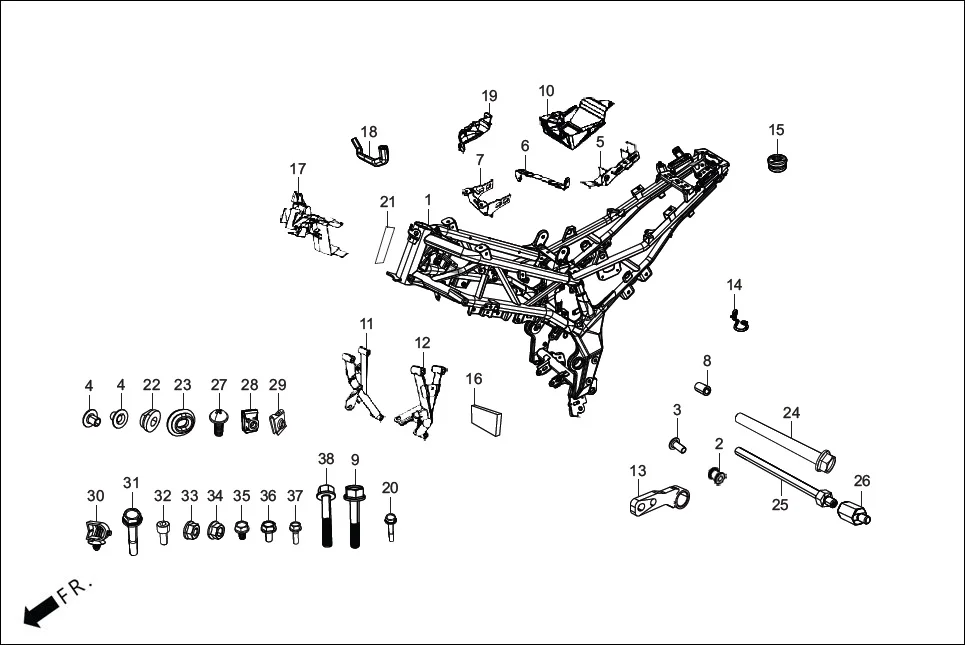

F-25 - FRAME BODY
Hero XTREME 250R(Mar., 2025) · 38 parts
Parts in This Assembly (38)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-ACW-000 | FRAME BODY COMP | 1 | |
| 2 | 18421-ABZ-000 | RUBBER, MUFF. MOUNT | 1 | |
| 3 | 18442-ABZ-000 | COLLAR MUFF MOUNT | 1 | |
| 4 | 19052-RAA-000 | COLLAR RADIATOR MOUNTING | 2 | |
| 5 | 50123-ACW-000 | RELAY STAY ASSY | 1 | |
| 6 | 50142-ACW-000 | BOX BATTERY MOUNTING BRKT ASSY | 1 | |
| 7 | 50209-ACW-000 | STAY ST MAG | 1 | |
| 8 | 50211-ACA-000 | ENGINE COLLAR | 1 | |
| 9 | 9580B-ACA-000 | BOLT FLANGE ASSY 10X50 | 1 | |
| 10 | 50236-ACW-000 | HEAT SHIELD A | 1 | |
| 11 | 50353-ACW-000 | ENGINE HNGR ASSY R | 1 | |
| 12 | 50354-ACW-000 | ENGINE HNGR ASSY L | 1 | |
| 13 | 50609-ACA-000 | STAY MUFFLER | 1 | |
| 14 | 50610-ACW-000 | DRAIN GUIDE WIRE | 1 | |
| 15 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 1 | |
| 16 | 83407-KTR-940 | RUBBER, BATTERY | 2 | |
| 17 | ACWAF2A001000G | STAY BCM ASSY | 1 | |
| 18 | ACWAF2A004000G | BEADING RUBBER BATTERY | 1 | |
| 19 | ACWAF2A009000G | COVER PROTECTION TERMINAL ASSY | 1 | |
| 20 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 1 | |
| 21 | ACYBF2A011000G | FILM PROTECTOR FRAME | 1 | |
| 22 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 3 | |
| 23 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 3 | |
| 24 | 90021-ACA-000 | BOLT FLANGE 10 X 100 | 2 | |
| 25 | 90031-ACW-000 | STUD M10X204 | 1 | |
| 26 | 90109-ACW-000 | NUT SPECIAL M10 | 2 | |
| 27 | 90116-KTP-900 | SCREW WASH 5X16 | 2 | |
| 28 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 29 | 90320-GC3-000 | NUT, SPRING, M5 | 1 | |
| 30 | 90685-AAW-D00 | CLIP CABLE | 2 | |
| 31 | SFBLFH006G | BOLT FLANGE M8X1.25X50X8.8_N | 4 | |
| 32 | SFBLTA015G | BOLT ALLEN M8X1.25X18X10.9_P | 2 | |
| 33 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 34 | 94050-10000 | NUT, FLANGE, 10MM | 3 | |
| 35 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 4 | |
| 36 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 4 | |
| 37 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 38 | 95801-10050-00 | BOLT FLANGE 10X50 | 1 | |
